Title: VGA+PS/2 Adapter...
Post by: gtnicol on December 25, 2010, 01:16:30 AM
Post by: gtnicol on December 25, 2010, 01:16:30 AM

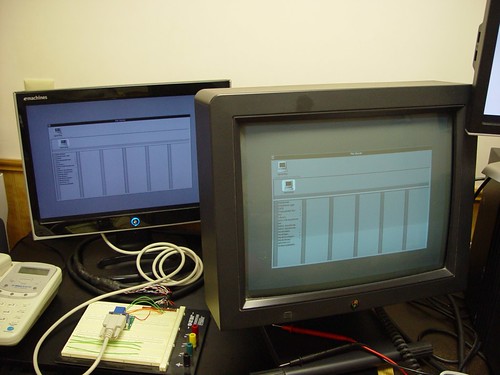

I have started the process of building an adapter for a VGA/LCD display and PC mouse/keyboard. I sacrificed a mono video cable and spliced in some leads so I could feed everything out to a breadboard (lots of soldering). After a (very) little prototyping I got the monochrome output mirrored on an LCD.
(http://www.flickr.com/photos/15578792@N02/5289796552/)
DSC00092 (http://www.flickr.com/photos/15578792@N02/5289796552/) by gtnicol (http://www.flickr.com/people/15578792@N02/), on Flickr
Next up will be the power switch, then keyboard and mouse, and maybe the sound as well. If all goes well, I should have enough information to build the moral equivalent of a sound board for modern machines.
(http://www.flickr.com/photos/15578792@N02/5289796552/)DSC00092 (http://www.flickr.com/photos/15578792@N02/5289796552/) by gtnicol (http://www.flickr.com/people/15578792@N02/), on Flickr
Next up will be the power switch, then keyboard and mouse, and maybe the sound as well. If all goes well, I should have enough information to build the moral equivalent of a sound board for modern machines.
