Title: NeXT Cube 3rd party Board Unidentified anyone seen this on
Post by: Rob Blessin Black Hole on September 13, 2013, 07:26:48 PM
Post by: Rob Blessin Black Hole on September 13, 2013, 07:26:48 PM

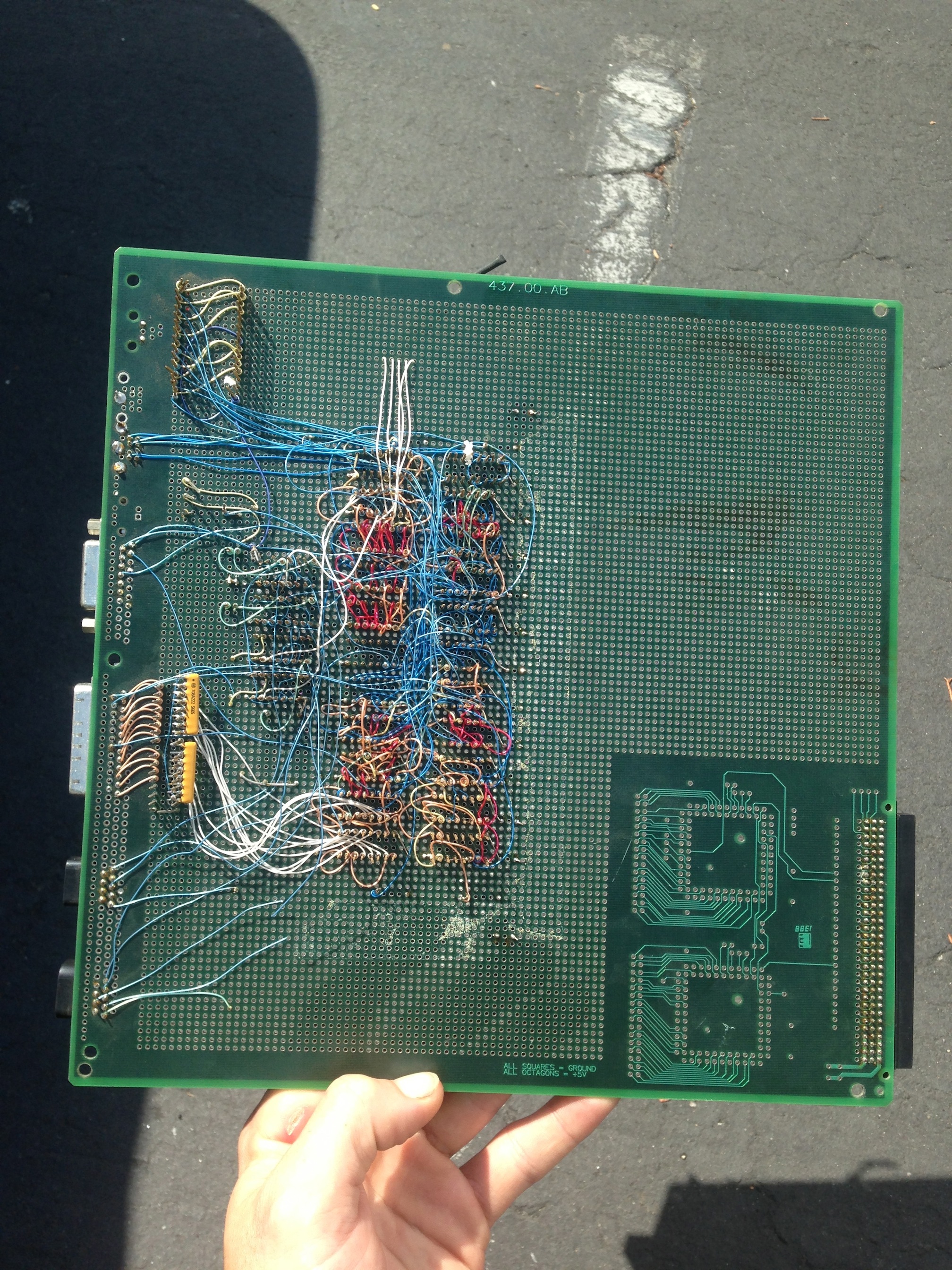

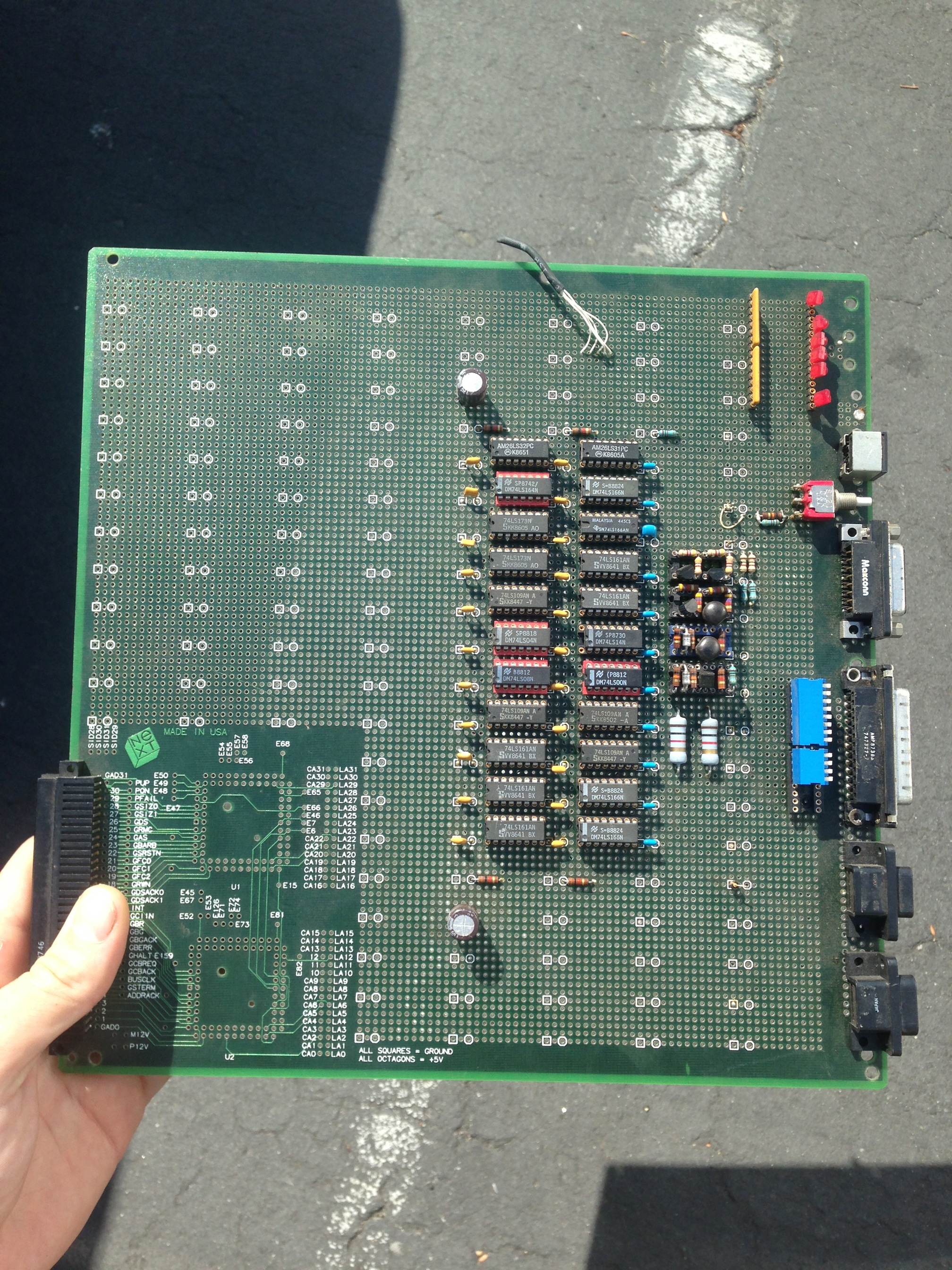

Hello NeXT Community: I'm posting this one for one of our new forum members Henry , he picked up an ultra cool NeXT 3rd party board and thought maybe someone here might have a clue what it is.
best Regards Rob Blessin[/img]
best Regards Rob Blessin[/img]
Title: NeXT Cube 3rd party Board Unidentified anyone seen this on
Post by: gtnicol on September 13, 2013, 08:35:23 PM
Post by: gtnicol on September 13, 2013, 08:35:23 PM
Looks like one of the prototyping boards with someone's project on it!
Title: NeXT Cube 3rd party Board Unidentified anyone seen this on
Post by: jroark on September 13, 2013, 09:13:28 PM
Post by: jroark on September 13, 2013, 09:13:28 PM
That's the prototype board that just sold on eBay, that I got outbid on ;).
John
John
Title: NeXT Cube 3rd party Board Unidentified anyone seen this on
Post by: haplain on September 14, 2013, 03:06:04 AM
Post by: haplain on September 14, 2013, 03:06:04 AM
I'm so excited to have it in my collection.
Title: NeXT Cube 3rd party Board Unidentified anyone seen this on
Post by: pentium on September 14, 2013, 12:29:41 PM
Post by: pentium on September 14, 2013, 12:29:41 PM
Yeah, that's the NeXTBus development board. Perfectly sized to fit in the NeXT Cube with accomidation for a variety of ports to be soldered to the back.
Unfortunately most if not all development potential for devices attached to the bus is lost as the NBIC is missing, which reduces it to a fancy PCB that's powered by the bus and has extremely limited bus support.

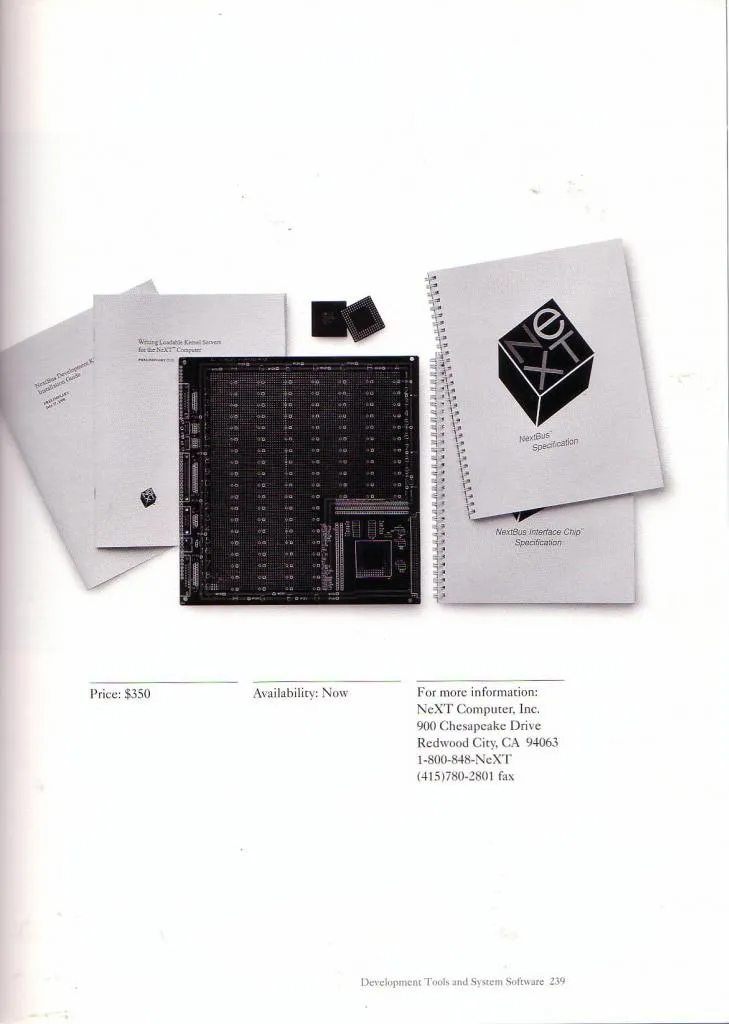

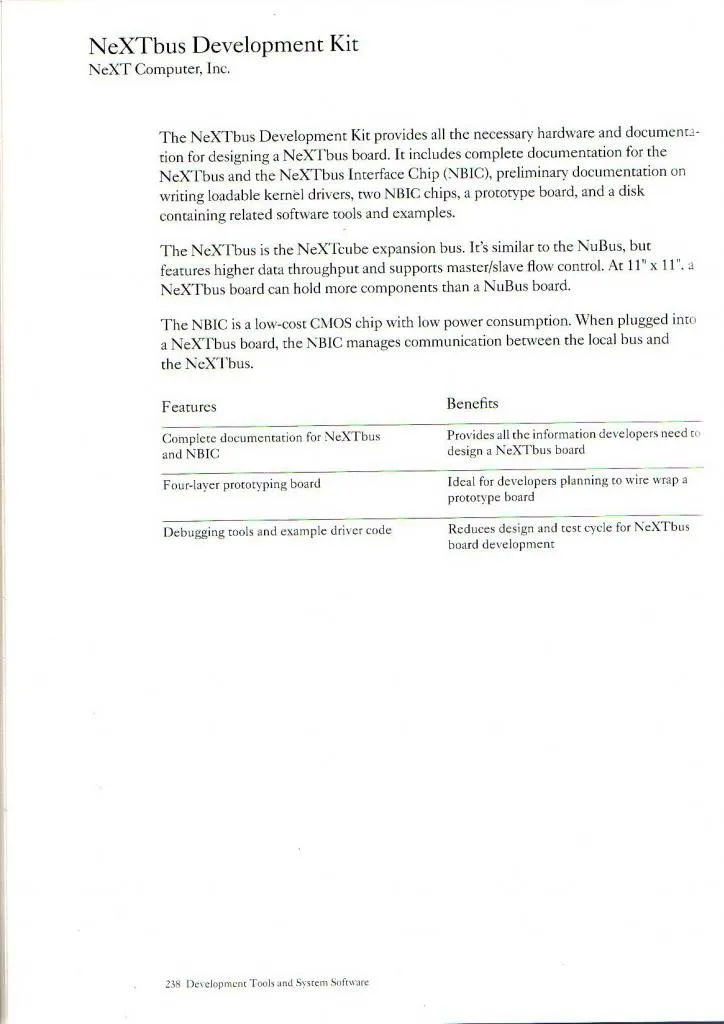

Edited: Just going to leave these here.
Unfortunately most if not all development potential for devices attached to the bus is lost as the NBIC is missing, which reduces it to a fancy PCB that's powered by the bus and has extremely limited bus support.
Edited: Just going to leave these here.
Title: NeXT Cube 3rd party Board Unidentified anyone seen this on
Post by: Rob Blessin Black Hole on September 15, 2013, 06:48:58 AM
Post by: Rob Blessin Black Hole on September 15, 2013, 06:48:58 AM

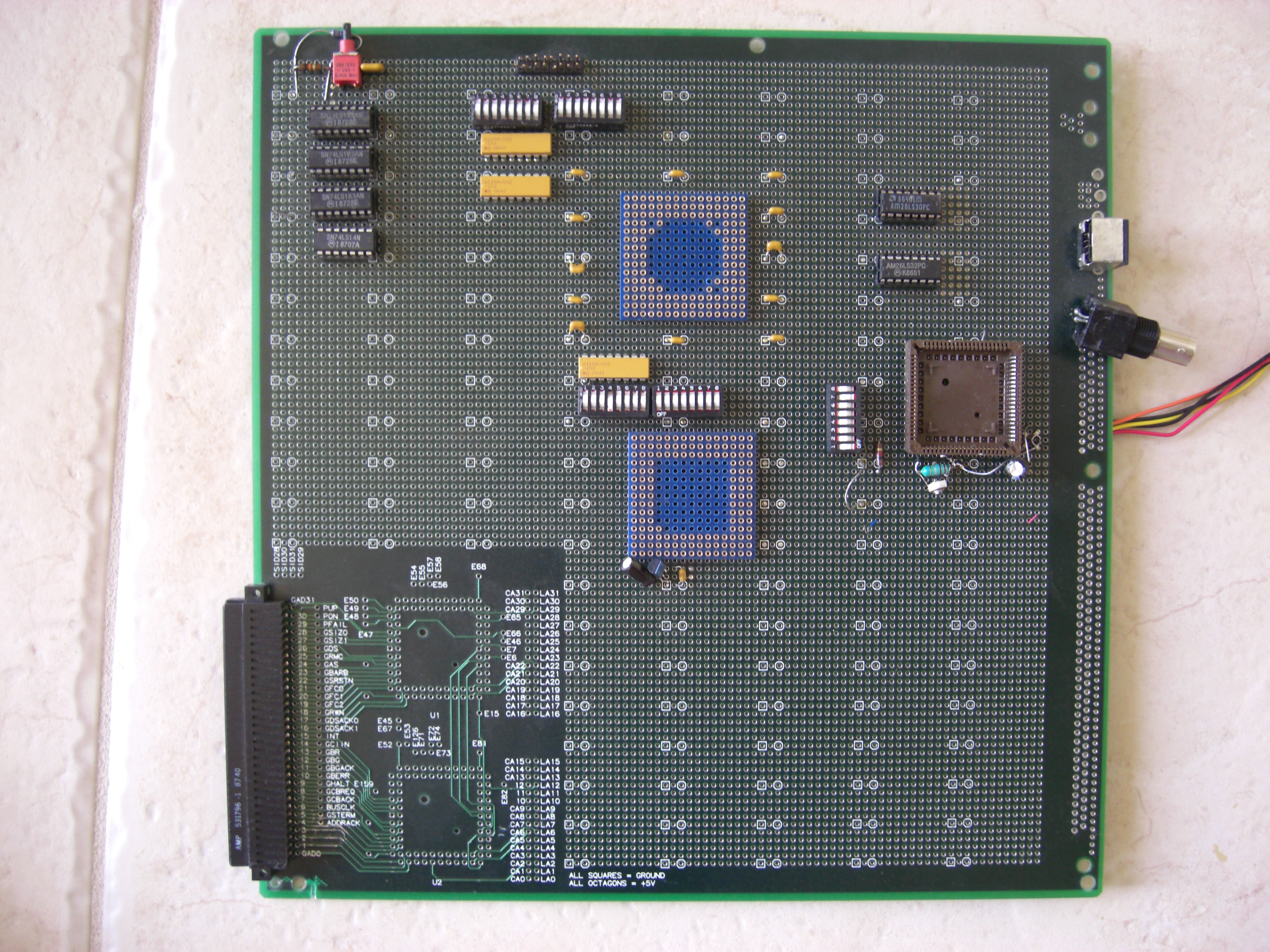

Looks like this one in the archives had an NBICsocket...
