Title: Nextstation turbo picture req / resistance and diode values
Post by: barcher174 on October 17, 2014, 12:03:35 AM
Post by: barcher174 on October 17, 2014, 12:03:35 AM
All,
Can someone send me a picture or give me the values of the capacitors/resistors and diode right next to the BNC connector on a nextstation turbo? I have a unit that was damaged in shipping that broke off the port and the related surface mount parts. Luckily each part was sheared off at the solder pad and caused no actual damage to the board.
Thanks,
Brian
Can someone send me a picture or give me the values of the capacitors/resistors and diode right next to the BNC connector on a nextstation turbo? I have a unit that was damaged in shipping that broke off the port and the related surface mount parts. Luckily each part was sheared off at the solder pad and caused no actual damage to the board.
Thanks,
Brian
Title: Re: Nextstation turbo picture req / resistance and diode val
Post by: Rob Blessin Black Hole on October 17, 2014, 03:07:02 AM
Post by: Rob Blessin Black Hole on October 17, 2014, 03:07:02 AM
Quote from: "barcher174"All,
Can someone send me a picture or give me the values of the capacitors/resistors and diode right next to the BNC connector on a nextstation turbo? I have a unit that was damaged in shipping that broke off the port and the related surface mount parts. Luckily each part was sheared off at the solder pad and caused no actual damage to the board.
Thanks,
Brian
Hello Brian: Will this help , it is a Turbo Color but guessing should be the same..! pdf 8 ? Best regards Rob Blessin
http://www.nextcomputers.org/NeXTfiles/Docs/Hardware/Schematics/Turbo_slab/
If you still need a photo let me know! Best regards Rob Blessin
Title: Nextstation turbo picture req / resistance and diode values
Post by: mikeboss on October 17, 2014, 09:03:34 AM
Post by: mikeboss on October 17, 2014, 09:03:34 AM
hi brian
I have a mono turbo slab in the basement. let me know if you still need pictures...
regards,
michael
I have a mono turbo slab in the basement. let me know if you still need pictures...
regards,
michael
Title: Nextstation turbo picture req / resistance and diode values
Post by: barcher174 on October 17, 2014, 12:45:25 PM
Post by: barcher174 on October 17, 2014, 12:45:25 PM
Hi Rob, Mikeboss,
Yes I would like to see a picture to confirm that the configuration matches with the schematic. It's hard to judge from the empty pads whether it was a cap or a resistor in each position.
Thanks,
Brian
Yes I would like to see a picture to confirm that the configuration matches with the schematic. It's hard to judge from the empty pads whether it was a cap or a resistor in each position.
Thanks,
Brian
Title: Nextstation turbo picture req / resistance and diode values
Post by: t-rexky on October 17, 2014, 02:12:38 PM
Post by: t-rexky on October 17, 2014, 02:12:38 PM
Hi Brian,

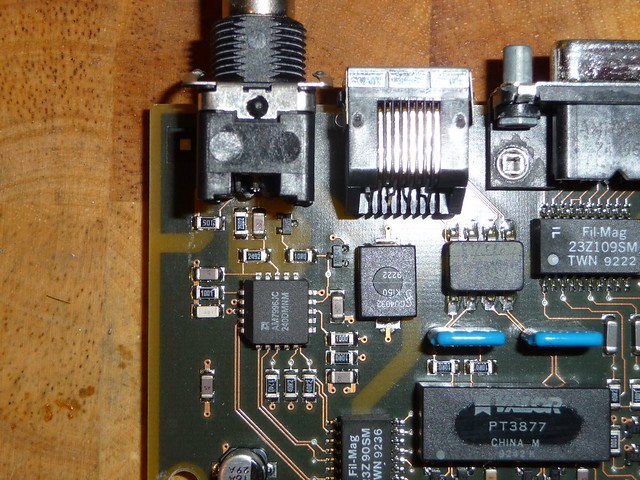

I have an uninstalled Turbo Color board handy, so it was no effort to take a quick snap:
https://flic.kr/p/pqpKQb
(it seems one can no longer inline flickr photos so I had to use a plain link)
Cheers,
Peter.
I have an uninstalled Turbo Color board handy, so it was no effort to take a quick snap:
https://flic.kr/p/pqpKQb
(it seems one can no longer inline flickr photos so I had to use a plain link)
Cheers,
Peter.
Title: Nextstation turbo picture req / resistance and diode values
Post by: barcher174 on October 17, 2014, 03:27:54 PM
Post by: barcher174 on October 17, 2014, 03:27:54 PM
Thanks! That matches my layout, so I feel confident about the values now.
--
Brian
--
Brian
Title: Nextstation turbo picture req / resistance and diode values
Post by: mikeboss on October 17, 2014, 04:13:59 PM
Post by: mikeboss on October 17, 2014, 04:13:59 PM
Quote from: "t-rexky"
(it seems one can no longer inline flickr photos so I had to use a plain link)
still possible :wink:
click on "Download this photo" in the lower right corner of the picture. then "View all sizes". then open the desired sized version. get the URL and you're done.
Title: Nextstation turbo picture req / resistance and diode values
Post by: t-rexky on October 17, 2014, 04:22:48 PM
Post by: t-rexky on October 17, 2014, 04:22:48 PM
Quote from: "mikeboss"still possible :wink:
Awesome, thanks for the hint!
Title: Nextstation turbo picture req / resistance and diode values
Post by: barcher174 on October 19, 2014, 02:46:57 PM
Post by: barcher174 on October 19, 2014, 02:46:57 PM
Thanks everyone, problem solved.
--
Brian
--
Brian
