Title: Prototype cube back from the dead
Post by: barcher174 on March 25, 2016, 02:05:24 AM
Post by: barcher174 on March 25, 2016, 02:05:24 AM
So you may have noticed I've been on a restoration binge recently. I'm trying to consolidate my more interesting pieces and begin to thin some of the remainder. I recapped an original 330mb HDD to accompany my prototype cube and installed it to find this:

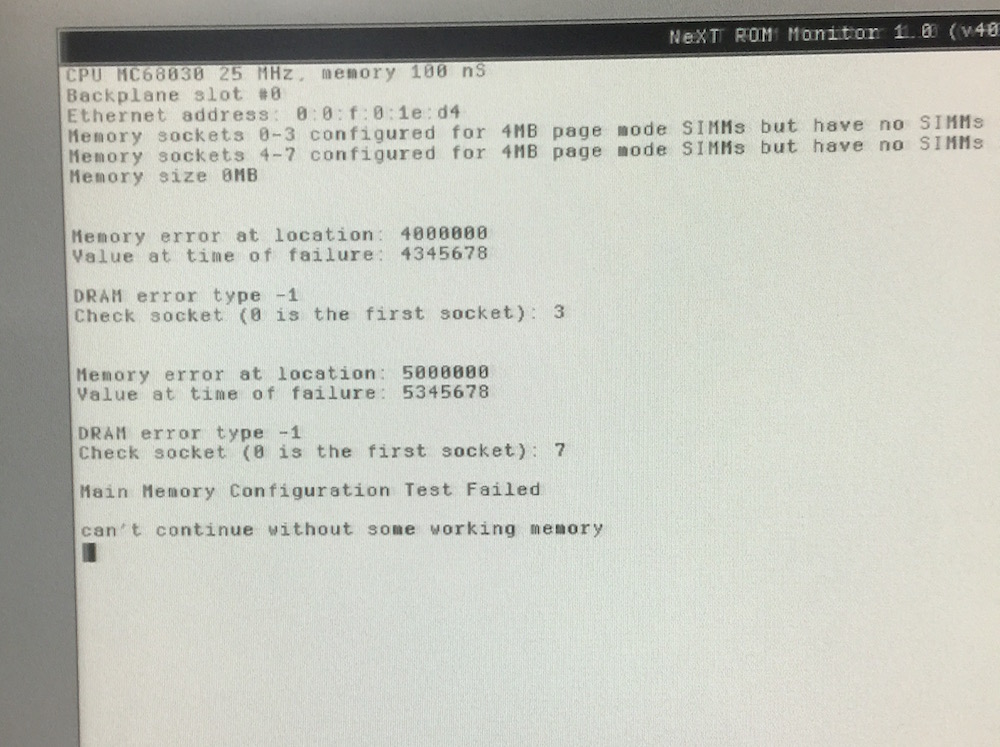

I then got it to display this:

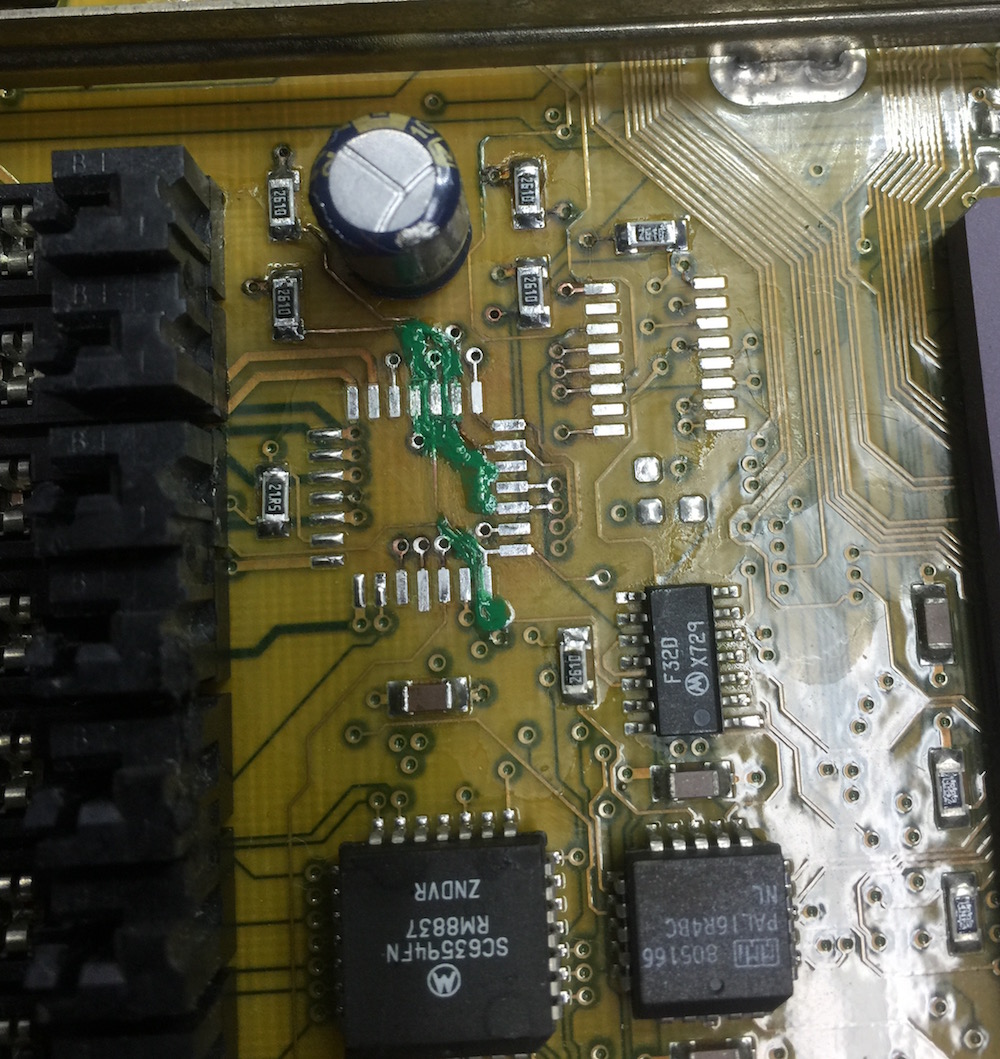

I was more than a little disappointed. I checked each RAM stick and everything came up fine. Looking at the board there was heavy corrosion near the RAM modules due to a leaking cap (220uF). Those had long been replaced, but I was suspicious of the components around it. Unfortunately I forgot the true before pic, but here is a pic with a buffer chip and resistor package removed:

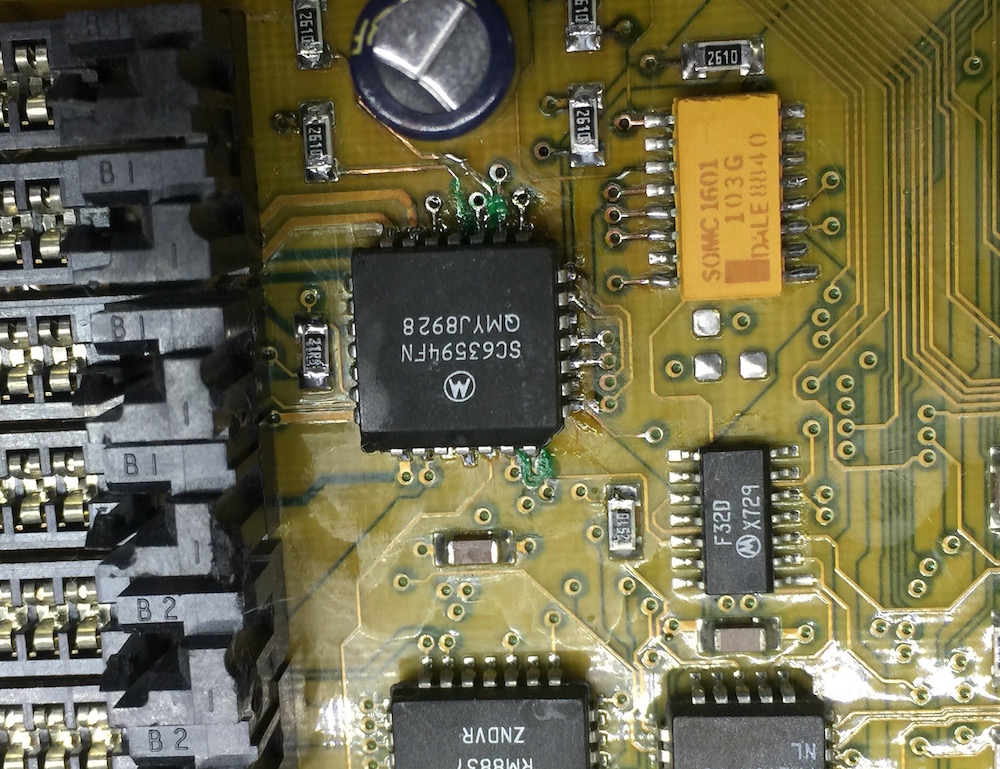

The green stuff is a solder mask pen. Between the pins there were traces that were rotted out. I repaired them and then put the mask over them so they wouldn't bridge when I replaced the chips. I believe the buffer chip was also bad. I have a 68040 donor board which I use to salvage hard to find parts like these. Here is the after pic:

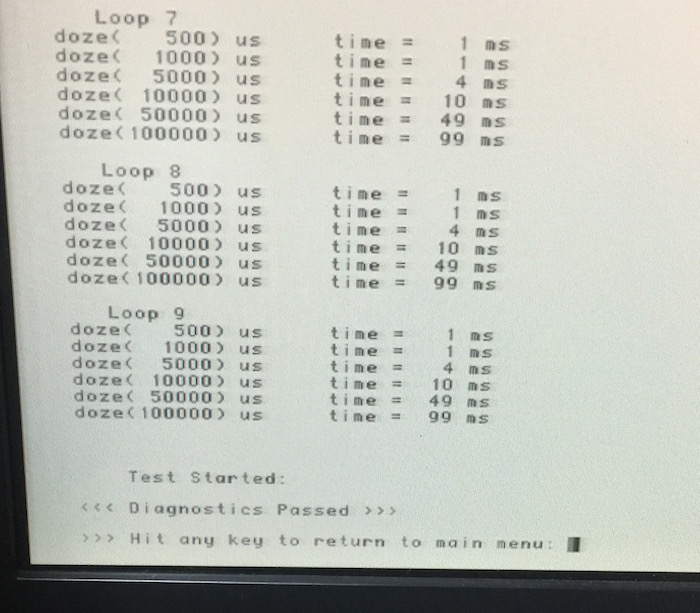

And.. It Worked!!
I then got it to display this:
I was more than a little disappointed. I checked each RAM stick and everything came up fine. Looking at the board there was heavy corrosion near the RAM modules due to a leaking cap (220uF). Those had long been replaced, but I was suspicious of the components around it. Unfortunately I forgot the true before pic, but here is a pic with a buffer chip and resistor package removed:
The green stuff is a solder mask pen. Between the pins there were traces that were rotted out. I repaired them and then put the mask over them so they wouldn't bridge when I replaced the chips. I believe the buffer chip was also bad. I have a 68040 donor board which I use to salvage hard to find parts like these. Here is the after pic:
And.. It Worked!!
Title: Re: Prototype cube back from the dead
Post by: Rob Blessin Black Hole on April 17, 2016, 01:52:33 AM
Post by: Rob Blessin Black Hole on April 17, 2016, 01:52:33 AM
Quote from: "barcher174"So you may have noticed I've been on a restoration binge recently. I'm trying to consolidate my more interesting pieces and begin to thin some of the remainder. I recapped an original 330mb HDD to accompany my prototype cube and installed it to find this:Nice work!
I then got it to display this:
I was more than a little disappointed. I checked each RAM stick and everything came up fine. Looking at the board there was heavy corrosion near the RAM modules due to a leaking cap (220uF). Those had long been replaced, but I was suspicious of the components around it. Unfortunately I forgot the true before pic, but here is a pic with a buffer chip and resistor package removed:
The green stuff is a solder mask pen. Between the pins there were traces that were rotted out. I repaired them and then put the mask over them so they wouldn't bridge when I replaced the chips. I believe the buffer chip was also bad. I have a 68040 donor board which I use to salvage hard to find parts like these. Here is the after pic:
And.. It Worked!!
