Title: Beta Testing SCSI 2SD V6.0.13 now working!
Post by: Rob Blessin Black Hole on November 15, 2016, 04:31:23 PM
Post by: Rob Blessin Black Hole on November 15, 2016, 04:31:23 PM
Hello NeXT Community:
I think I'm close to having the new version 6 card working but hoping you can help troubleshoot what is causing the eror which repeats over and over , I'm getting as it starts to boot.
NeXT Turbo Color V74 Rom Chip
1) I have a clean install of Openstep 4.2 on an 8Gb MicroSD set up with 4 2gb partitions , this works great for all NeXT Hardware using the earlier version of the scsi sd 5.0 card with 4.6 flash
2) The Config8.xml file attached is what I use 512 , 139 and 4 sectors per track and it works
3) I've set same disk driver parameters for the new version 6 card in confignew.xml
4) Matched the settings in both cards and saved to device

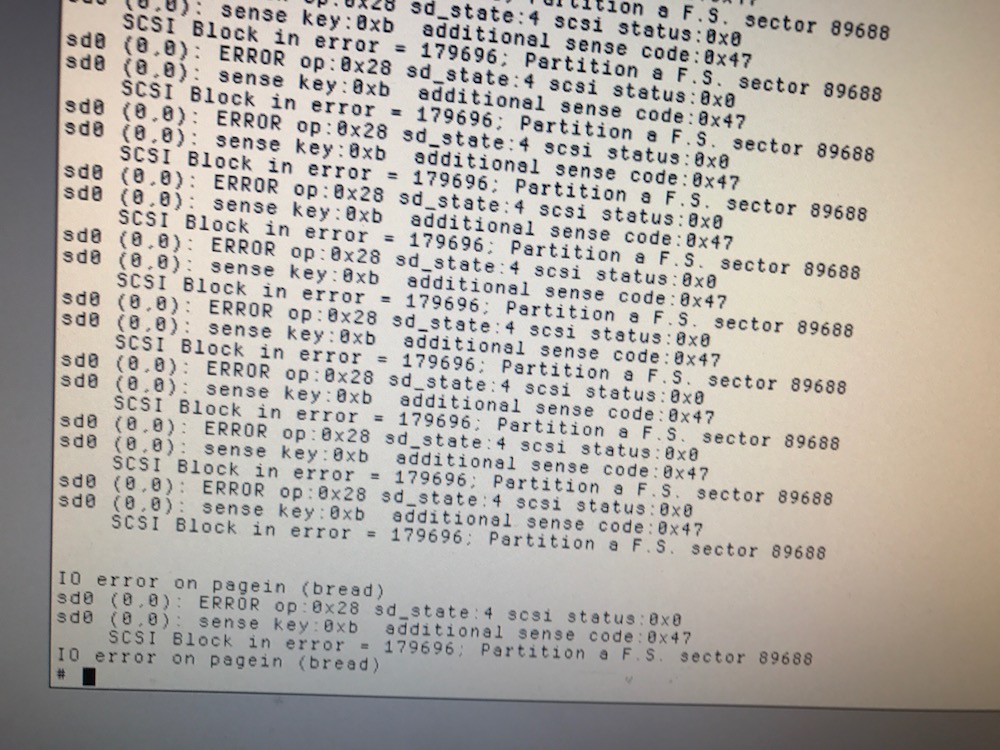

5) Here is my youtube video showing the boot process and errors https://youtu.be/1yKEHTWeG5A
Check the you tube video for errors!
Any help appreciated and I've forwarded this to Mik McMaster as well!
Best Regards Rob Blessin
