Title: NeXT Sound Card mounted in Cube Back Filler plate
Post by: Rob Blessin Black Hole on March 06, 2018, 05:24:44 PM
Post by: Rob Blessin Black Hole on March 06, 2018, 05:24:44 PM

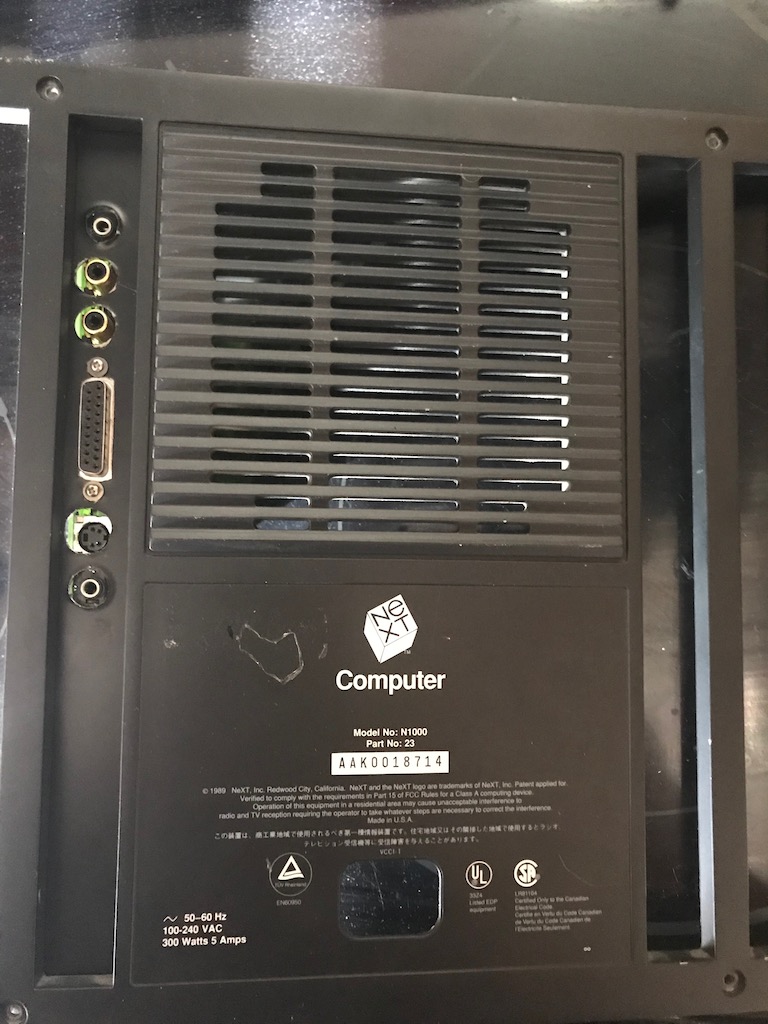

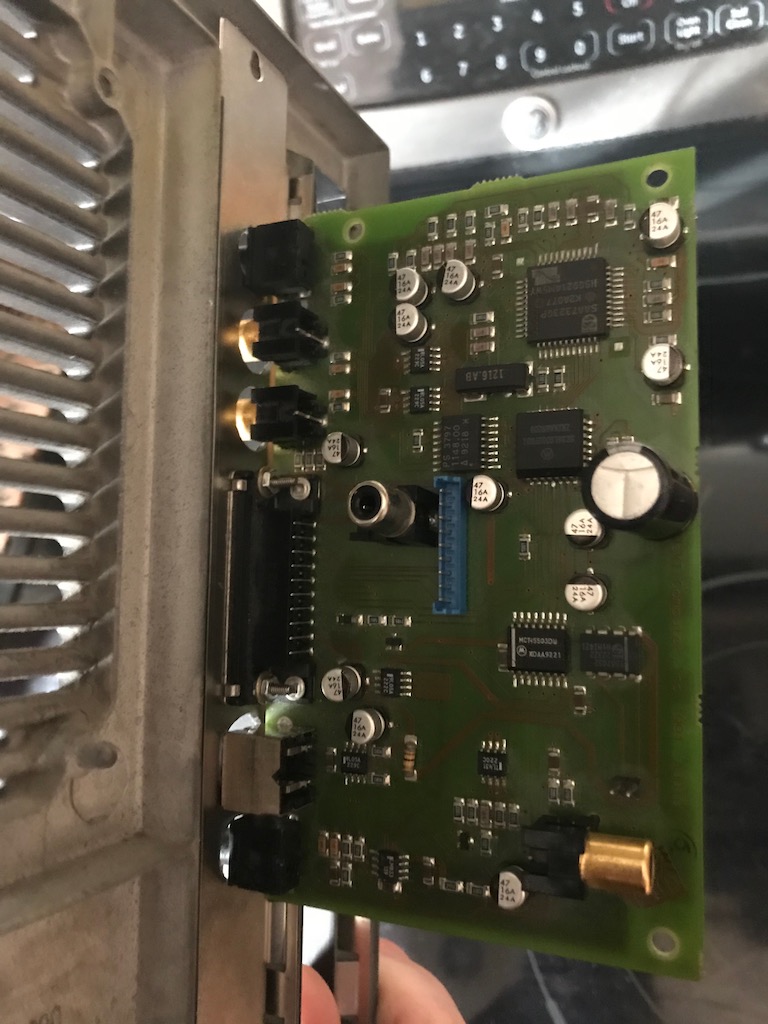

Hello NeXT Community: We are tinkering with a prototype of moving the soundcard inside the Cube , prototype 1
and yes we will mount speaker and microphone and leave room for the dimension board! I think we should be able to do pass through VGA Video mount on modded board
or just our custom VGA Y cable for use with flatpanel .
Also using Brians Megaload board for Model 152 power supplies.
Best Regards Rob Blessin
and yes we will mount speaker and microphone and leave room for the dimension board! I think we should be able to do pass through VGA Video mount on modded board
or just our custom VGA Y cable for use with flatpanel .
Also using Brians Megaload board for Model 152 power supplies.
Best Regards Rob Blessin
Title: NeXT Sound Card mounted in Cube Back Filler plate
Post by: barcher174 on March 06, 2018, 05:55:40 PM
Post by: barcher174 on March 06, 2018, 05:55:40 PM
Hi Rob,
Looks good. Are you making new card covers or modifying existing ones? Also no need to mount the VGA to the board. You could just use a panel mount style connector.
Looks good. Are you making new card covers or modifying existing ones? Also no need to mount the VGA to the board. You could just use a panel mount style connector.
Title: NeXT Sound Card mounted in Cube Back Filler plate
Post by: Rob Blessin Black Hole on March 06, 2018, 07:09:33 PM
Post by: Rob Blessin Black Hole on March 06, 2018, 07:09:33 PM
We used the existing fillers , however hey must be stainless steel because they were difficult to Dremmel. I think a custom 3d printed filler plate or entire back might be cool as well. As I have a few Cube Shells missing front and back plates. I want to try out the 3d scanner we have and see how well it works. I want to make some Cube Feet and 4000 Feet ..... more fun projects.
