Title: scsi2sd v6 hangs
Post by: schlika on October 28, 2019, 02:47:06 PM
Post by: schlika on October 28, 2019, 02:47:06 PM
Hi !
I successfully installed and used a scsi2sd v6 (latest firmware 6.2.7) on my TurboColor, which mostly works fine together with a Samsung branded 4Gb SDHC Class 4 sdcard, setup with 1*2Gb HD, 1*1Gb HD and 1 600Mo CDROM. I had a tired but still finely working 2Gb Seagate Barracuda 4LP HD, and the Station worked flawlessly with it.
Setup went quite OK (I dd'd the install CD on the emulated CDROM), but encountered a few strange issues after installation, like unable to reboot (hang state in the gray screen after closing windows) with forced fsck after reboot, and total inability to untar the NeXTStep 3.3 official Patch3 (NS33CISCUserPatch3.tar) . Scsi2sd blinks for a while and then stays lit, nothing happens, CTRL-C can't stop it, and hours later I got a "read error".
Strangely enough, gnutar finally successfully untarred the file and I could install it.

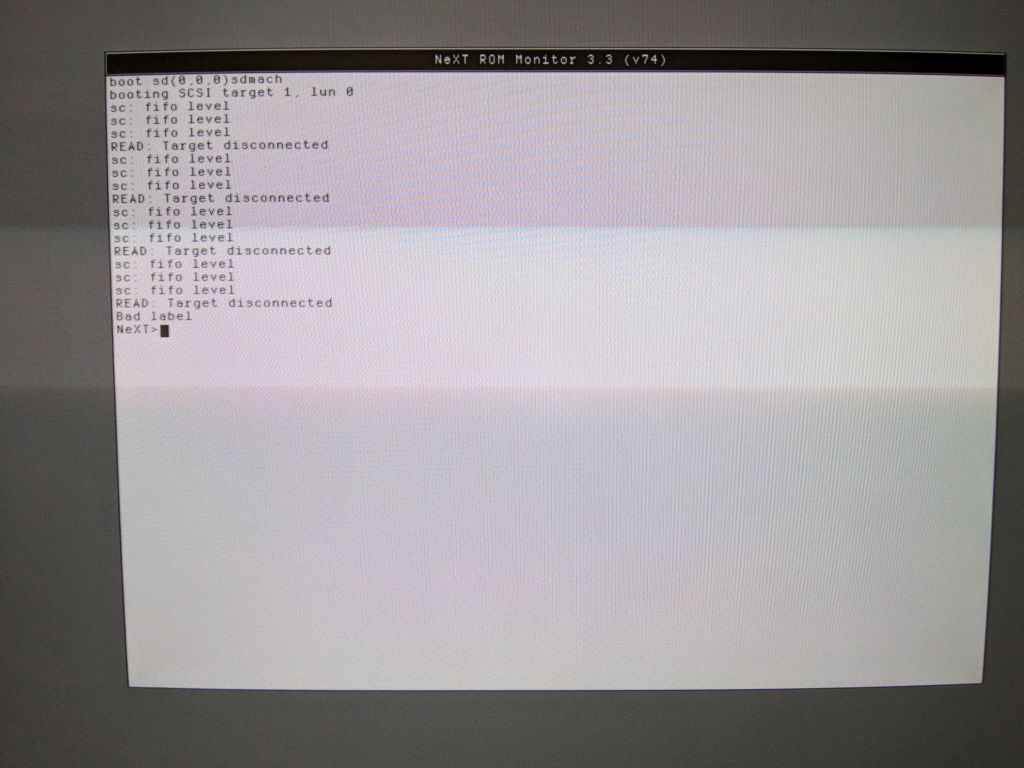

I also can reproduce the same exact trouble when using nwbench's disk benchmark, same symptoms, the led stays lid, the machine hangs on io (I suppose), I have to call the rom monitor to force a reboot, and even after a reboot the scsi2sd adapter seems to stay hung, as I get this screen (see attached screenshot).
Have you ever had that kind of stuff ? Any idea ?
Thanks a lot !
I successfully installed and used a scsi2sd v6 (latest firmware 6.2.7) on my TurboColor, which mostly works fine together with a Samsung branded 4Gb SDHC Class 4 sdcard, setup with 1*2Gb HD, 1*1Gb HD and 1 600Mo CDROM. I had a tired but still finely working 2Gb Seagate Barracuda 4LP HD, and the Station worked flawlessly with it.
Setup went quite OK (I dd'd the install CD on the emulated CDROM), but encountered a few strange issues after installation, like unable to reboot (hang state in the gray screen after closing windows) with forced fsck after reboot, and total inability to untar the NeXTStep 3.3 official Patch3 (NS33CISCUserPatch3.tar) . Scsi2sd blinks for a while and then stays lit, nothing happens, CTRL-C can't stop it, and hours later I got a "read error".
Strangely enough, gnutar finally successfully untarred the file and I could install it.
I also can reproduce the same exact trouble when using nwbench's disk benchmark, same symptoms, the led stays lid, the machine hangs on io (I suppose), I have to call the rom monitor to force a reboot, and even after a reboot the scsi2sd adapter seems to stay hung, as I get this screen (see attached screenshot).
Have you ever had that kind of stuff ? Any idea ?
Thanks a lot !
Title: Re: scsi2sd v6 hangs
Post by: Rob Blessin Black Hole on October 29, 2019, 11:06:11 PM
Post by: Rob Blessin Black Hole on October 29, 2019, 11:06:11 PM
Hello : It may be your SD Card is not seated snugly in the slot as it looks like it is trying to find it. I'll have to try version 6 again as I've been using the 5.1 cards, how did you set up the XML file?
Title: Re: scsi2sd v6 hangs
Post by: joeyhagedorn on November 06, 2019, 09:31:03 PM
Post by: joeyhagedorn on November 06, 2019, 09:31:03 PM
Yep, several folks, elemenoh and myself, have had this happen on another thread: "NextStep 3.3 on 040 Cube won't shut down" (http://www.nextcomputers.org/forums/index.php?topic=4272.msg25437#msg25437)
I just updated my SCSI2SD v6 to the latest firmware (updated a week ago it looks like) and am going to give that another try. I don't think we have any solid idea of what's going on at the moment.
I just updated my SCSI2SD v6 to the latest firmware (updated a week ago it looks like) and am going to give that another try. I don't think we have any solid idea of what's going on at the moment.
Title: Re: scsi2sd v6 hangs
Post by: schlika on November 07, 2019, 02:18:13 PM
Post by: schlika on November 07, 2019, 02:18:13 PM
Allright, thanks for the info, guess I'll wait for a firmware update !
Title: Re: scsi2sd v6 hangs
Post by: schlika on November 07, 2019, 02:20:29 PM
Post by: schlika on November 07, 2019, 02:20:29 PM
Quote from: Rob Blessin Black Hole on October 29, 2019, 11:06:11 PMHello : It may be your SD Card is not seated snugly in the slot as it looks like it is trying to find it. I'll have to try version 6 again as I've been using the 5.1 cards, how did you set up the XML file?
I doubt it, the sdcard sits ok. I used scsi2sd-util6 (linux) as a base and did a few edits about drive geometry by hand.
Title: Re: scsi2sd v6 hangs
Post by: joeyhagedorn on November 08, 2019, 07:10:52 PM
Post by: joeyhagedorn on November 08, 2019, 07:10:52 PM
Quote from: schlika on November 07, 2019, 02:18:13 PMAllright, thanks for the info, guess I'll wait for a firmware update !
I tested out the latest SCSI2SD firmware (6.2.8) and encountered the same issues. I'm not sure we've identified a specific firmware issue yet—so I suspect this is unlikely to "just get fixed".
For the time being, I'm going to look at sourcing a spinning SCSI disk I can use in my cube.
