3D Printed NU_IO Case

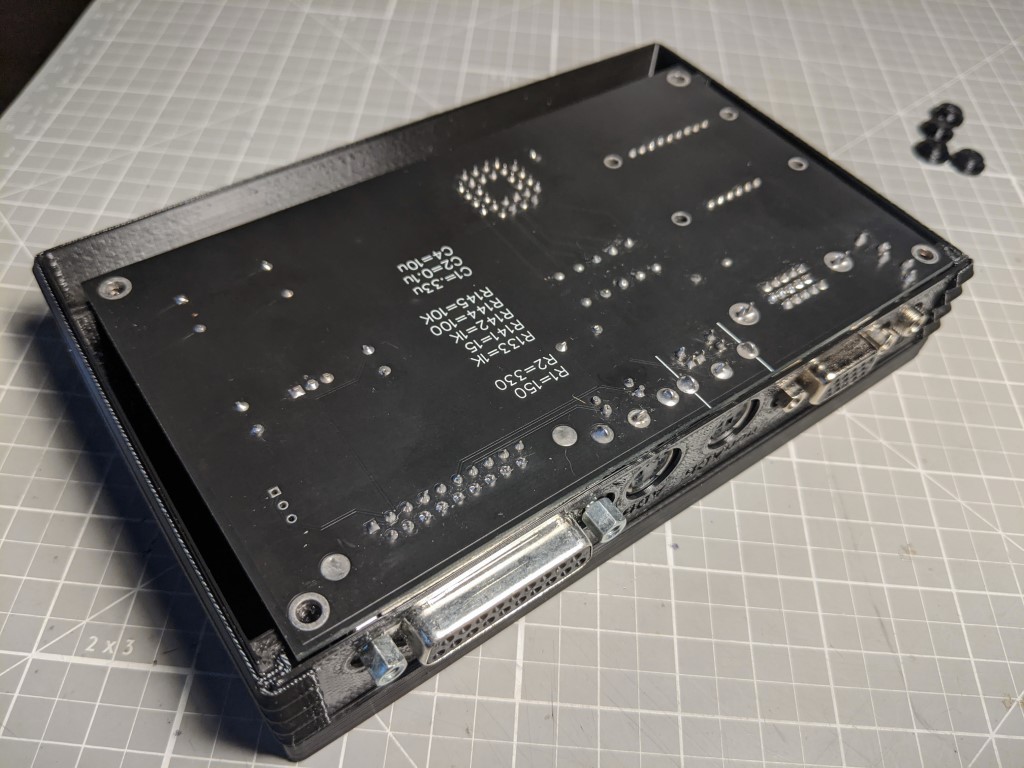

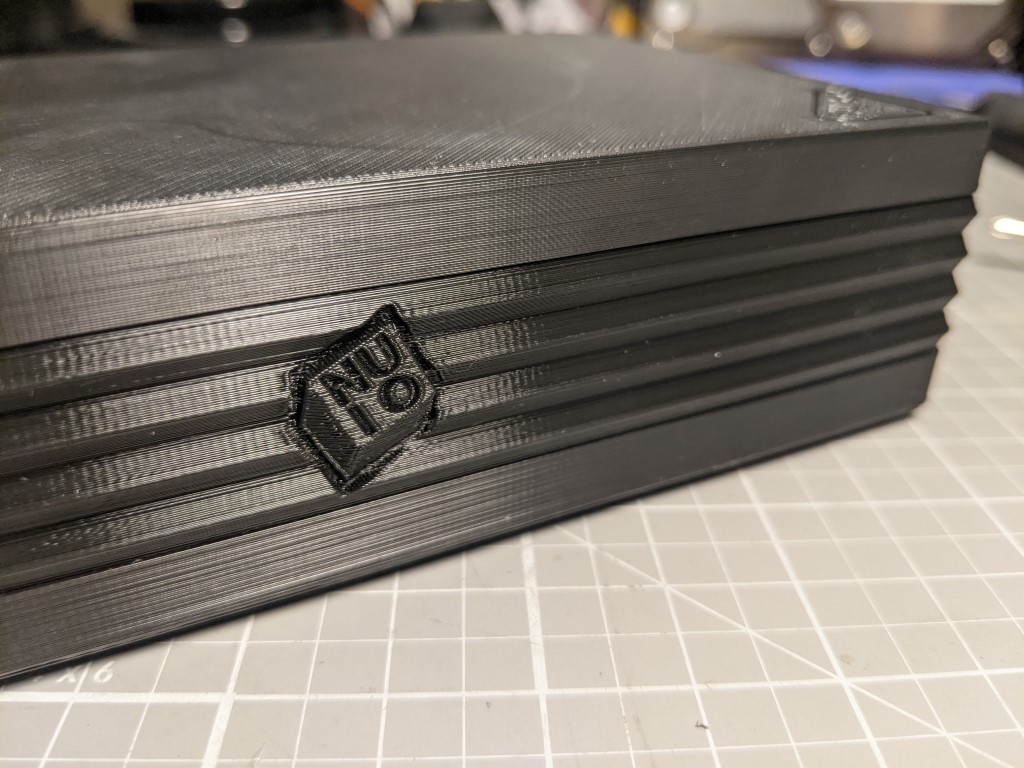

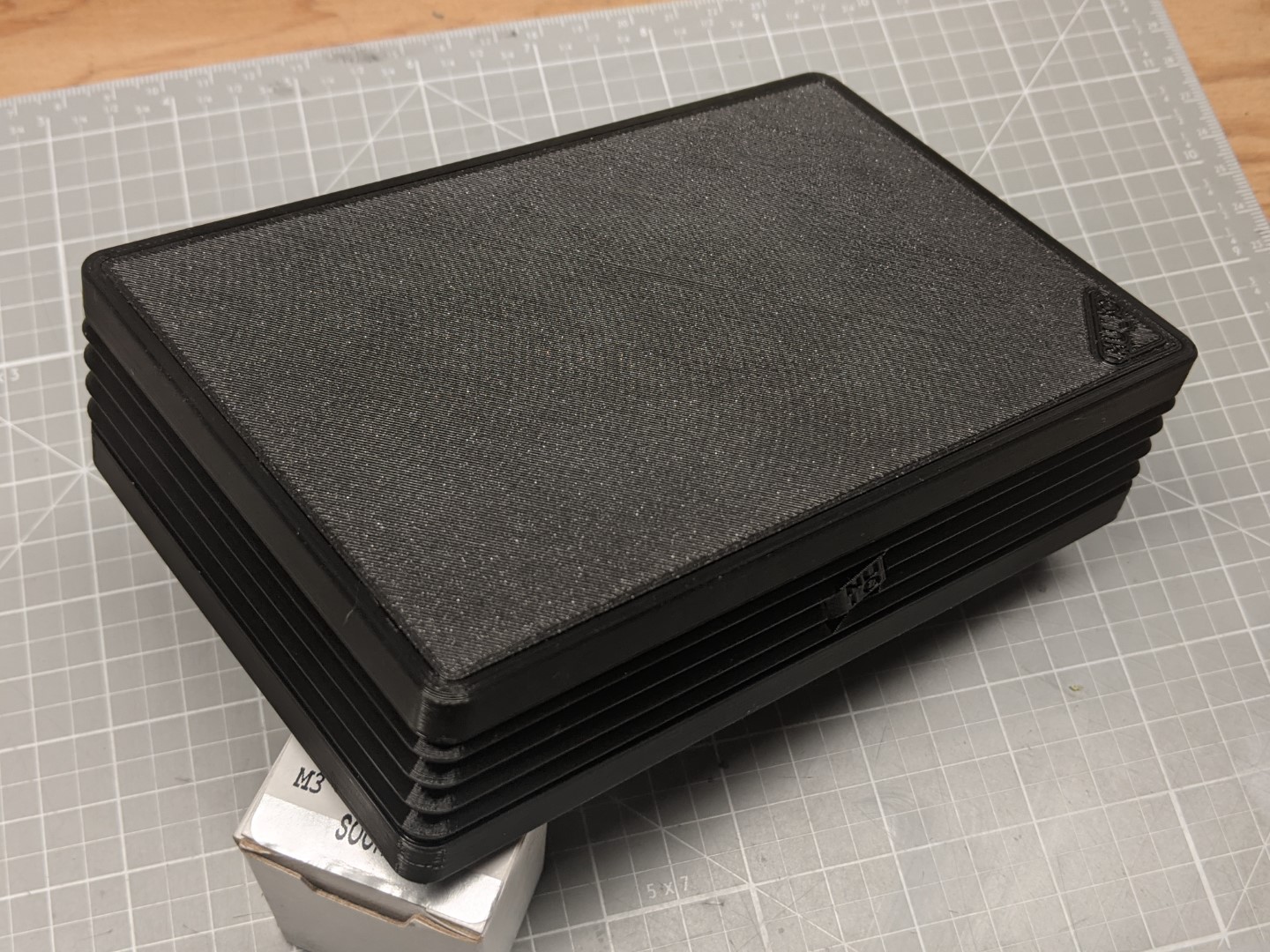

When I ordered my NU_IO I reached out to Brian about designing a case for them, after a couple of questions about things he would like to see and getting the dimensions of the board I started on the design and came up with the following case.

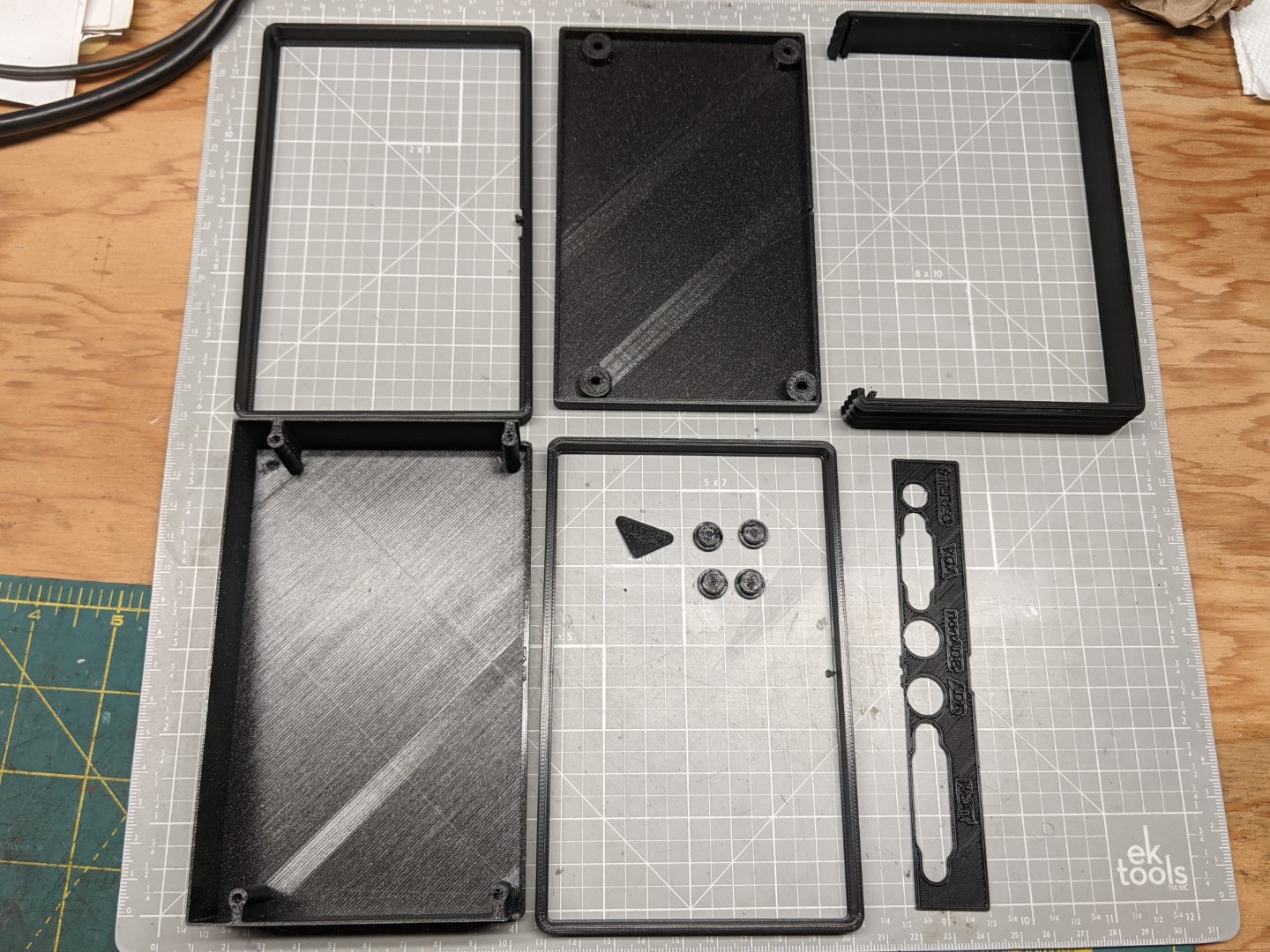

The case is printed in five pieces, the top, bottom, rib, case feet and the swappable back plate. The rib is printed separate so it can be printed in a different color than the main case (in this case a gloss black), the back plate, top and bottom are printed in a semi-matte (unfortunately hard to tell from the pictures) black, and the feet are printed in TPU (flexible plastic). The back plate was designed to be swappable to allow future revisions of the board and not having to reprint the whole case, plus it allows the plate to be printed flat to get more readable text from the print.

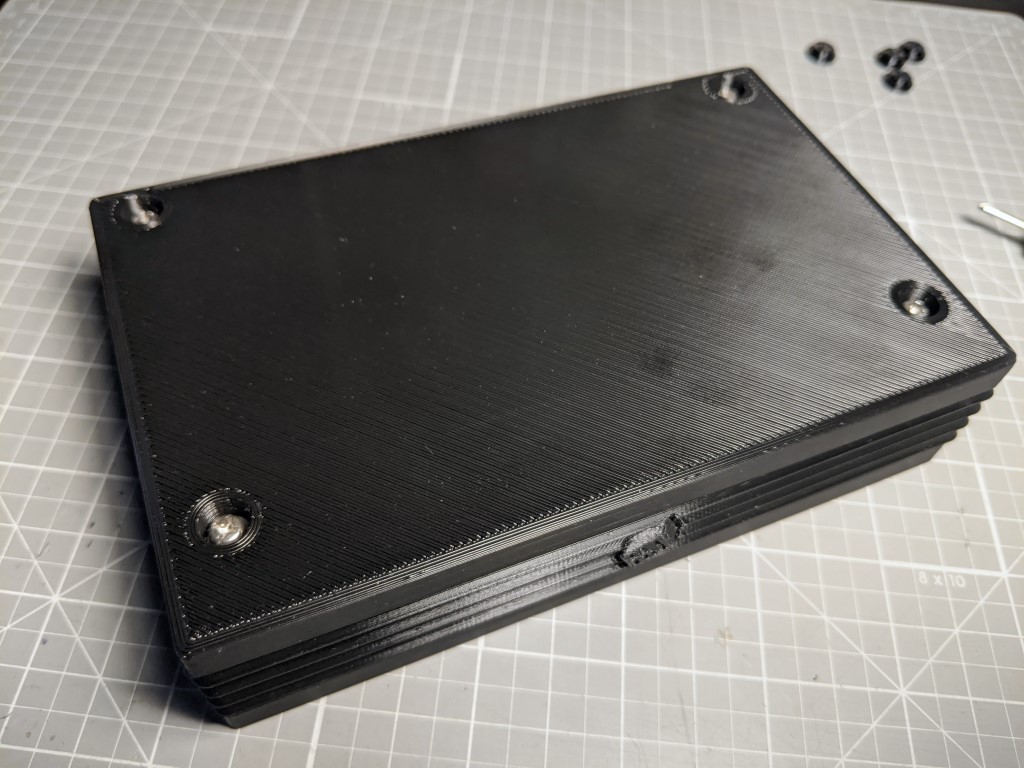

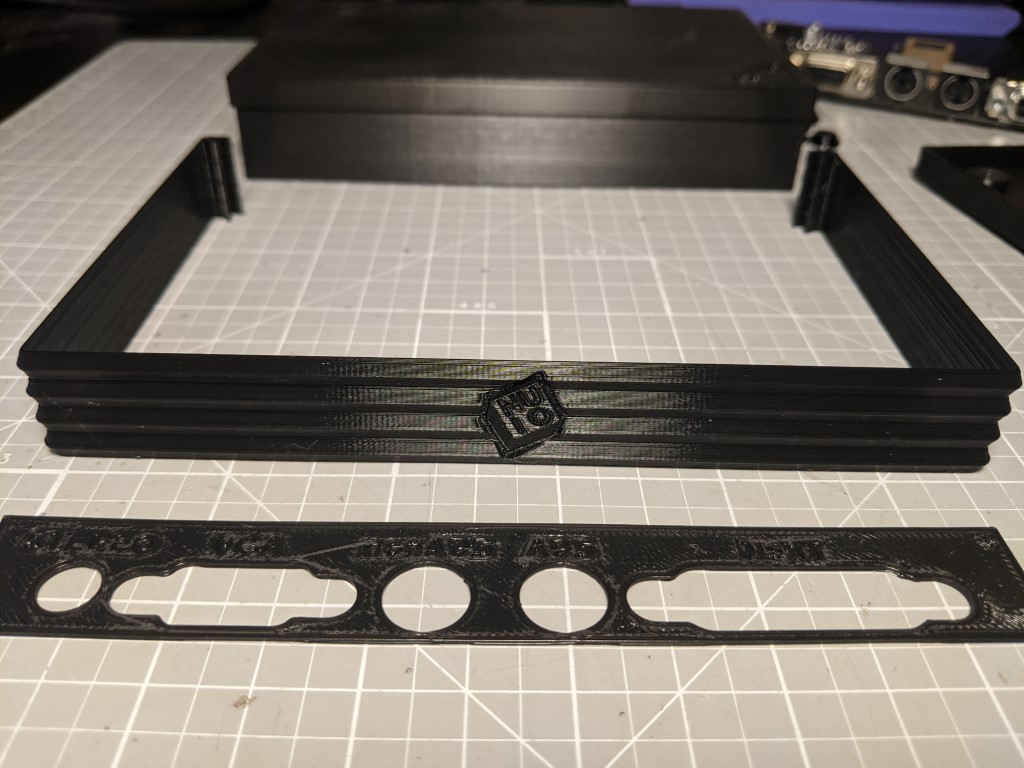

The rib captures the back plate and grips the top of the case to stay secure and the whole thing is held together with 4 M3 screws, which are then covered by the TPU case feet.

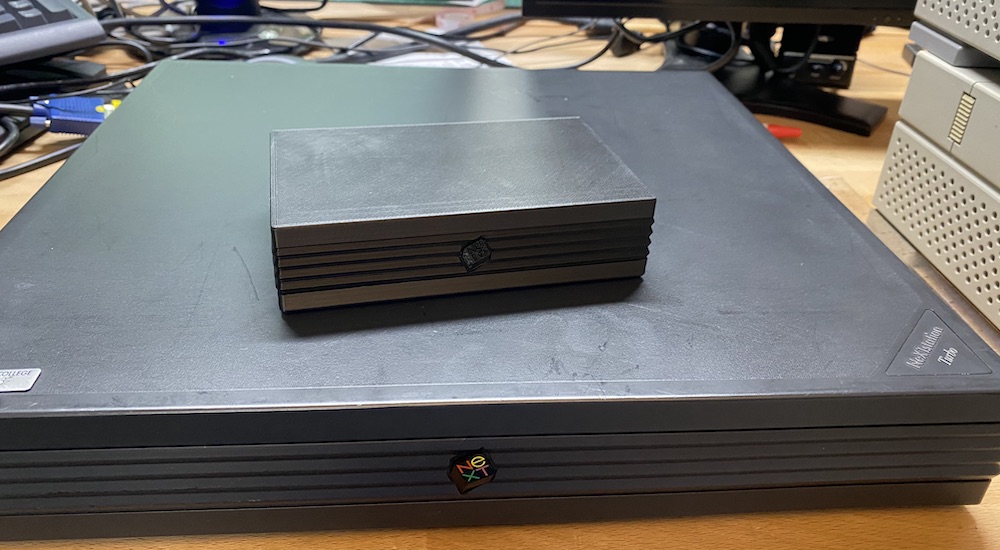

I am super happy with how this case came out and it looks great sitting next to my NeXTstations.

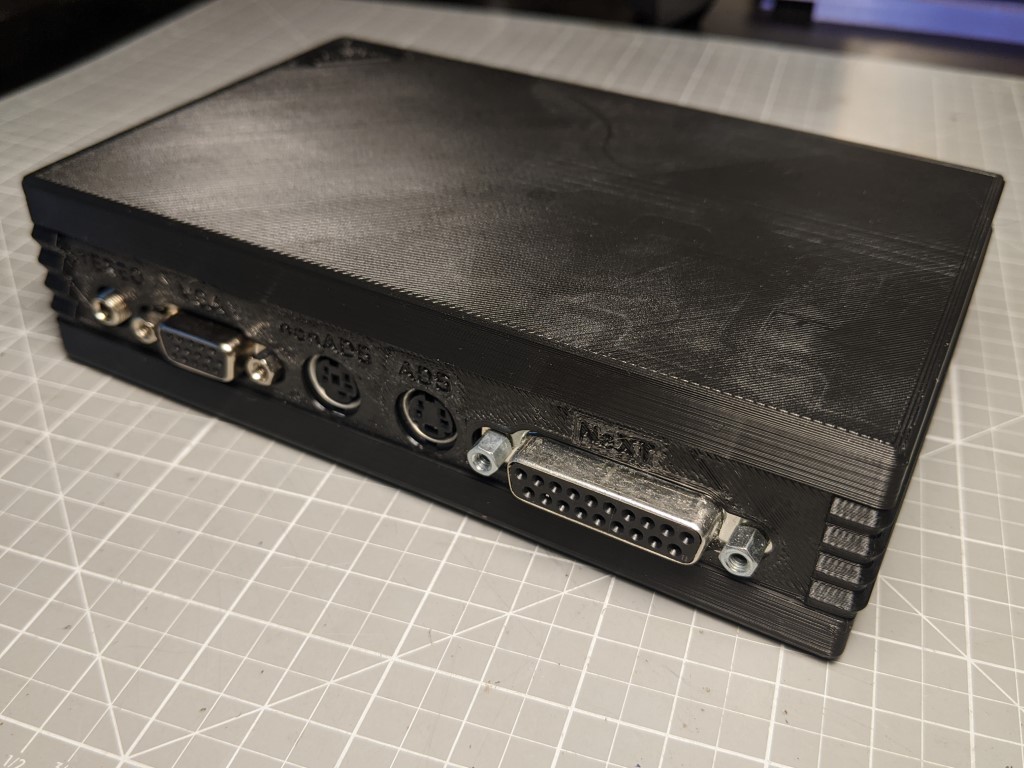

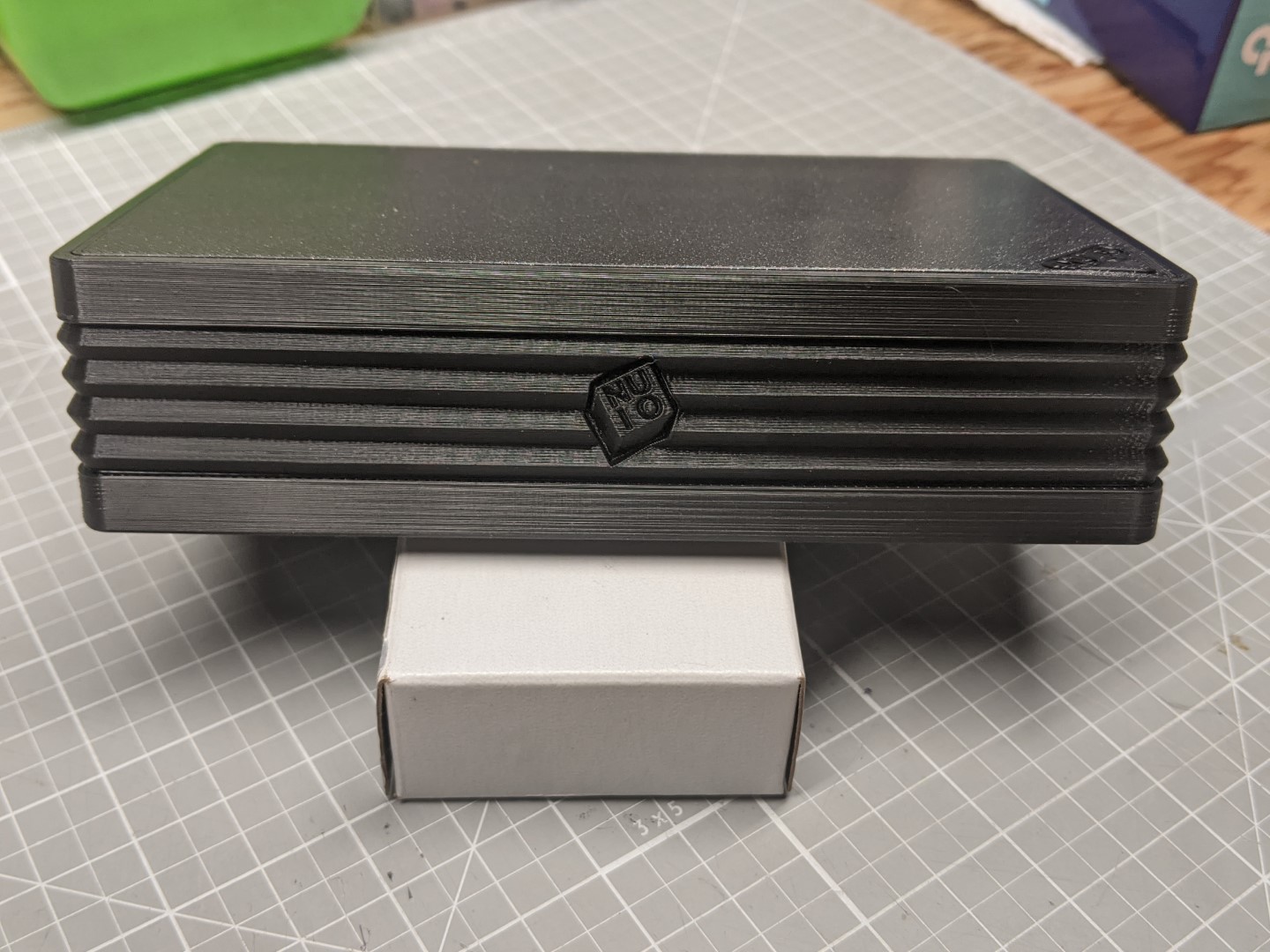

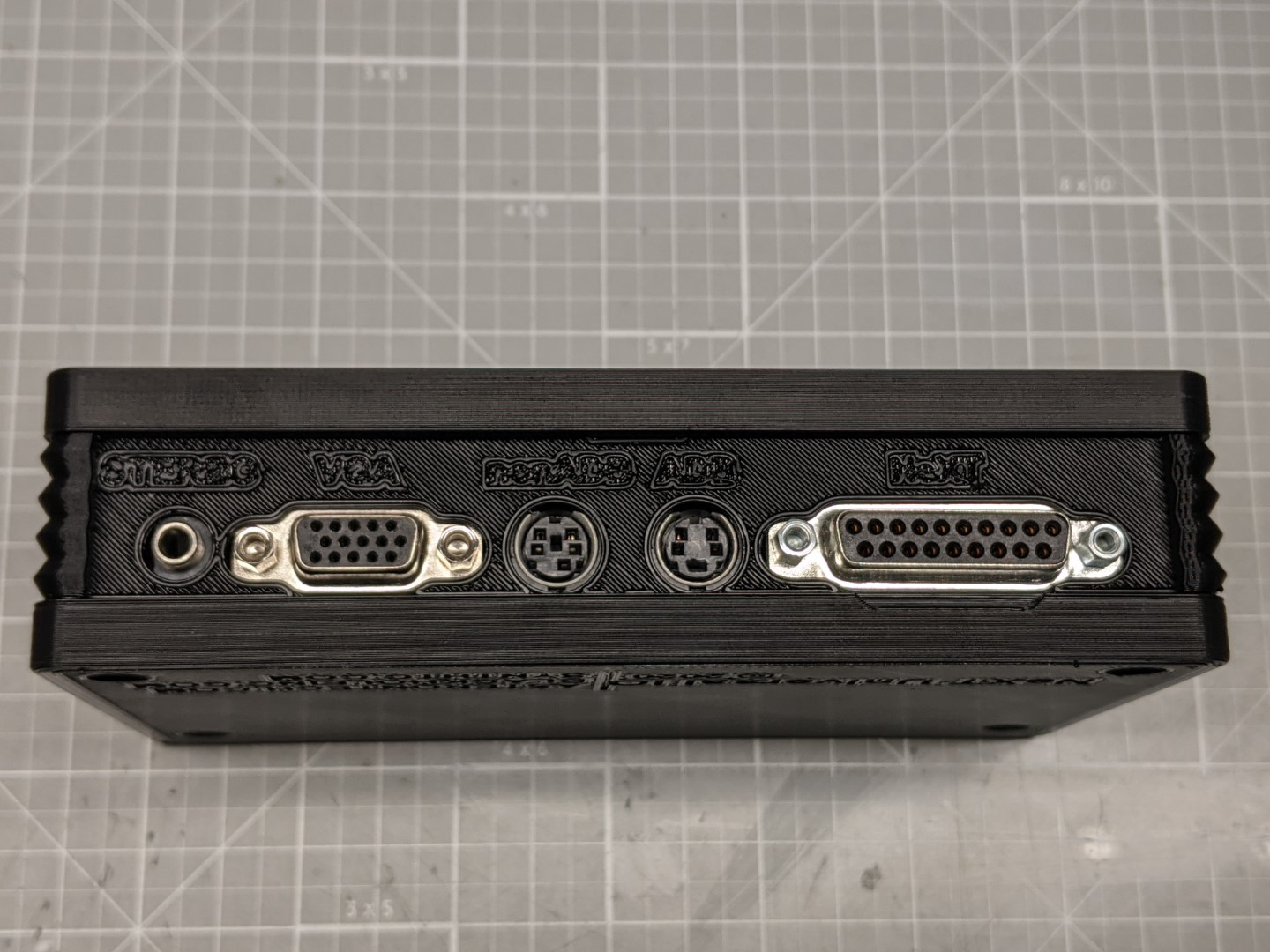

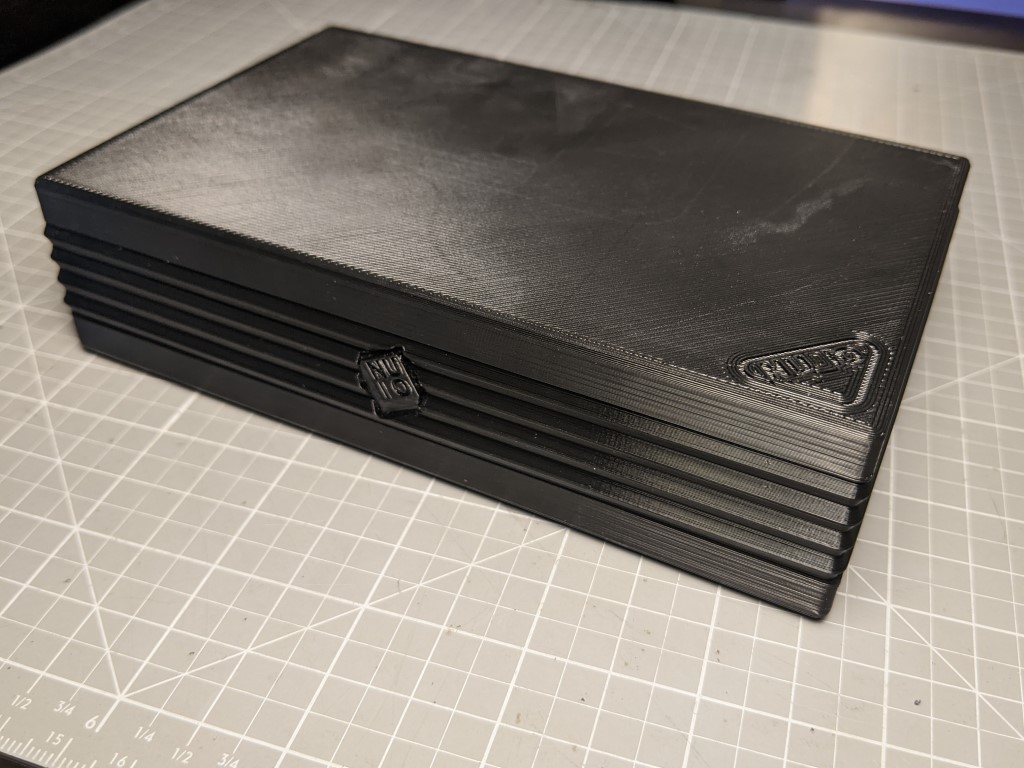

Couple more photos of the assembly



Some details about the print itself:

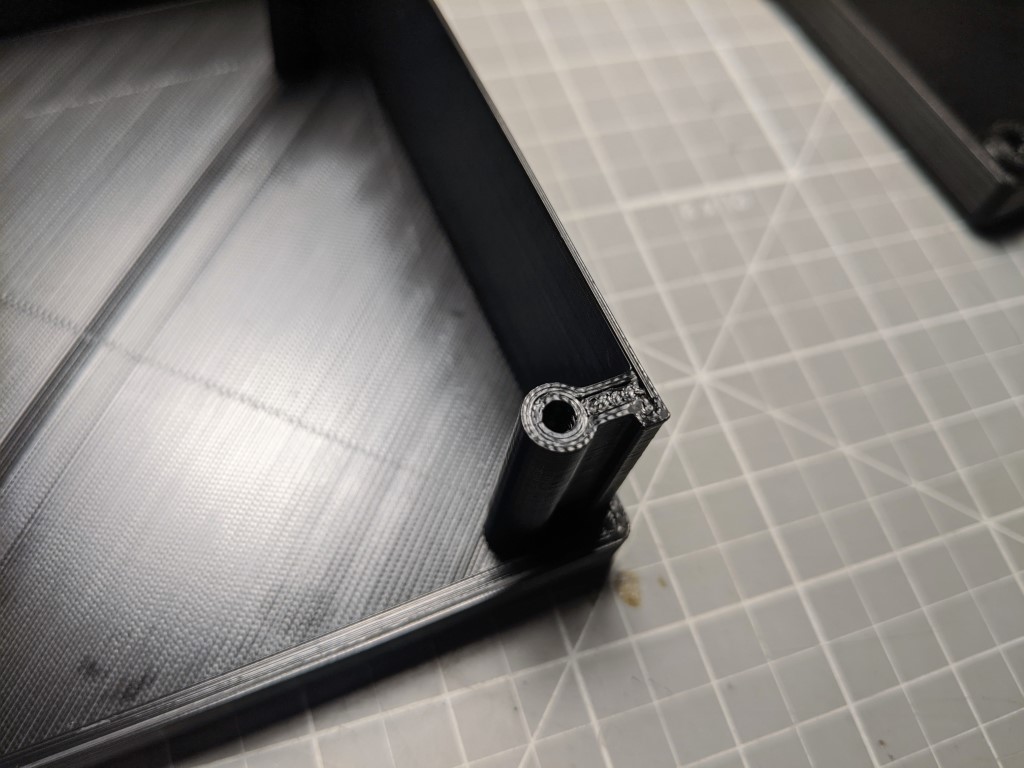

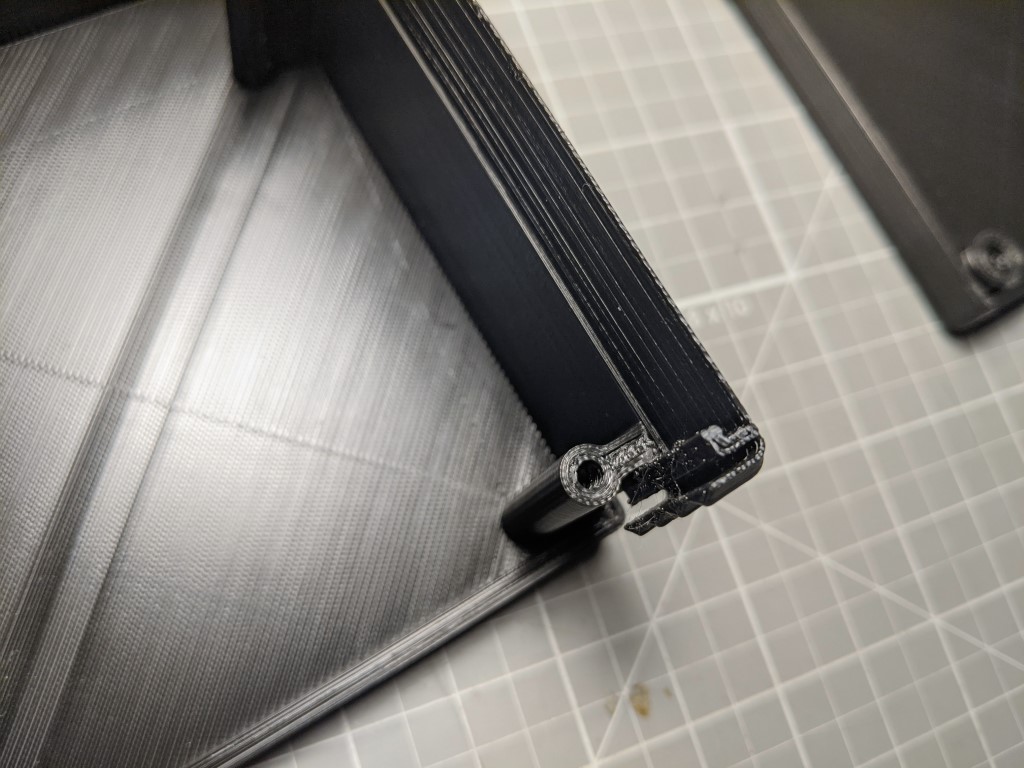

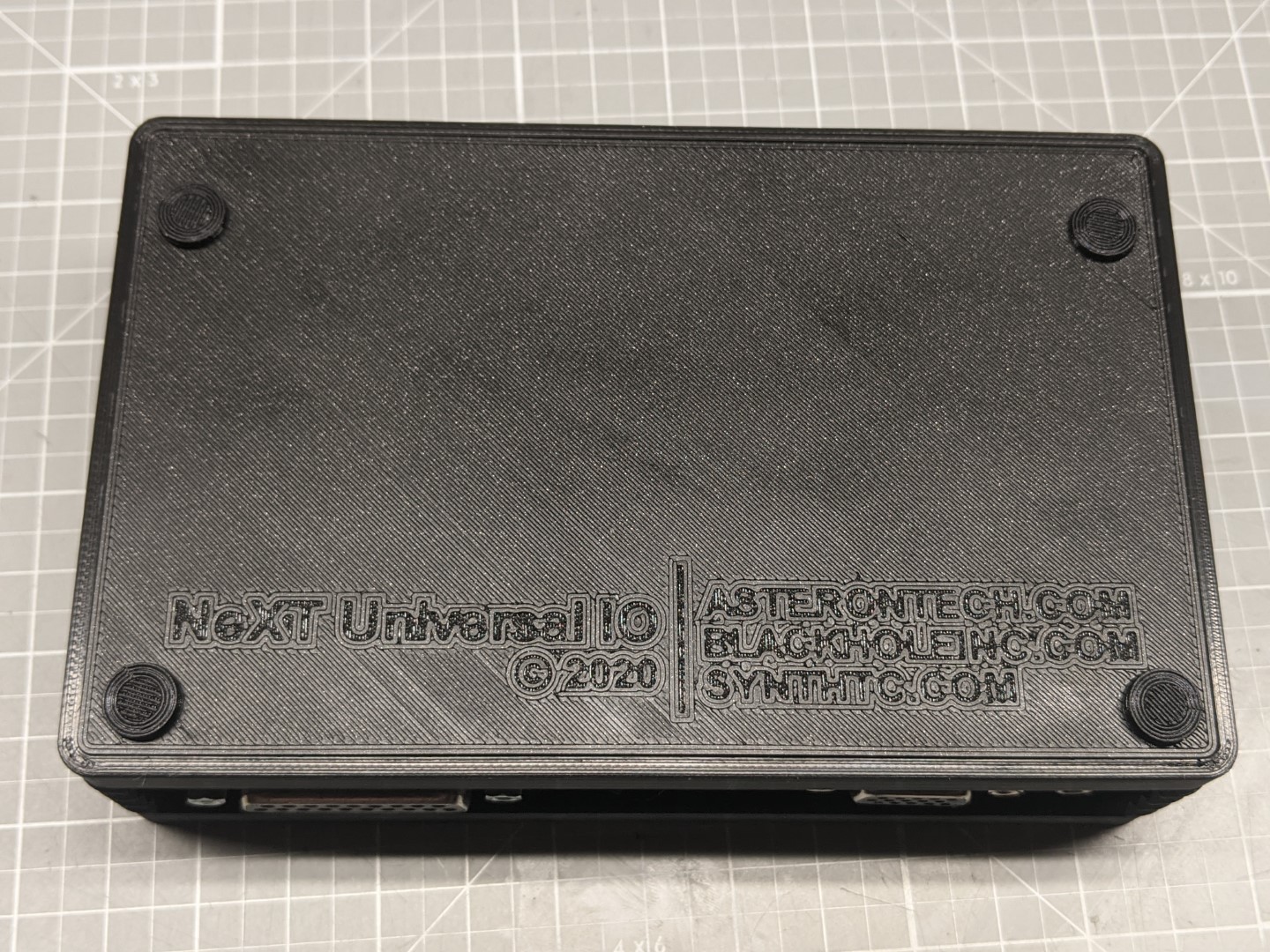

I usually print on a glass bed, but as you can see on the picture of the bottom of the case this produces a high gloss finish even for the semi-matte black, so I switched to an older buildtak surface for the top of the case which produces a nice matte finish, but also allows it to pick up some light impressions of previous prints or scuffs on the surface. Its less noticeable in person than the pictures.

These parts were printed with Hatchbox Black PLA for the rib, Polymaker PolyMax PETG for the top, bottom, back plate and Sainsmart TPU95 for the feet. All parts were printed with 0.2 layer height except the rib section which was 0.15. No support was used, and only the rib was printed with a raft. The printer is a Raise3D N2+ with a Bondtech upgrade.

If there is an interest I can see about providing the STL files, the models do have a couple of tight tolerances so hopefully it would be easily printable by others.

The cases are absolutely beautiful in person.







Rbz really hit it out of the park with this. The way it all fits together was -very- well thought out. I think I was supposed to provide some constructive criticism, but frankly I think it's perfect.

Those are gorgeous.  Definitely would like the STL files so I can print up a couple for my own NU_IO boards.

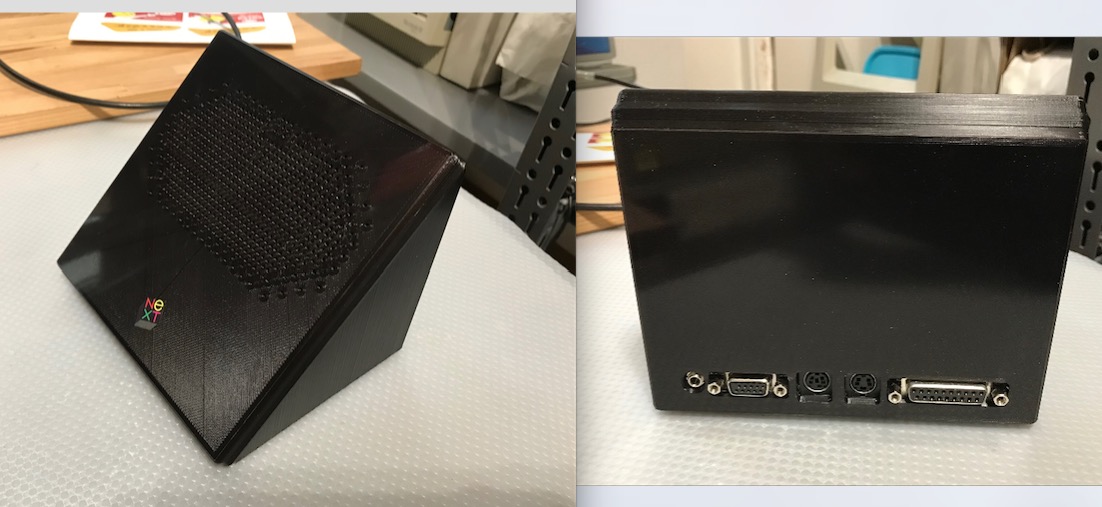

Nice project, congratulations. I had a shell for the Brian's NU_IO printed with an identical look to the original Soundbox. Unfortunately the printing service that made the shell doesn't want to give me the STL files 🙁

Yo I could use a couple of these as well after lighting myself up touching the bottom of these boards!

Quote from: trodemaster on September 23, 2020, 05:26:25 PMYo I could use a couple of these as well after lighting myself up touching the bottom of these boards!

Quote from: Theta-K7 on September 14, 2020, 12:58:31 AMThose are gorgeous.  Definitely would like the STL files so I can print up a couple for my own NU_IO boards.

I am making a few tweaks to the design, and then I will be happy to send out the STL to whomever wants to print a case for their own personal use.

Quote from: krazycat on September 14, 2020, 02:36:54 AMUnfortunately the printing service that made the shell doesn't want to give me the STL files 🙁

Ugh, that blows! I was thinking of doing a soundbox based design but I don't have a soundbox to replicate.

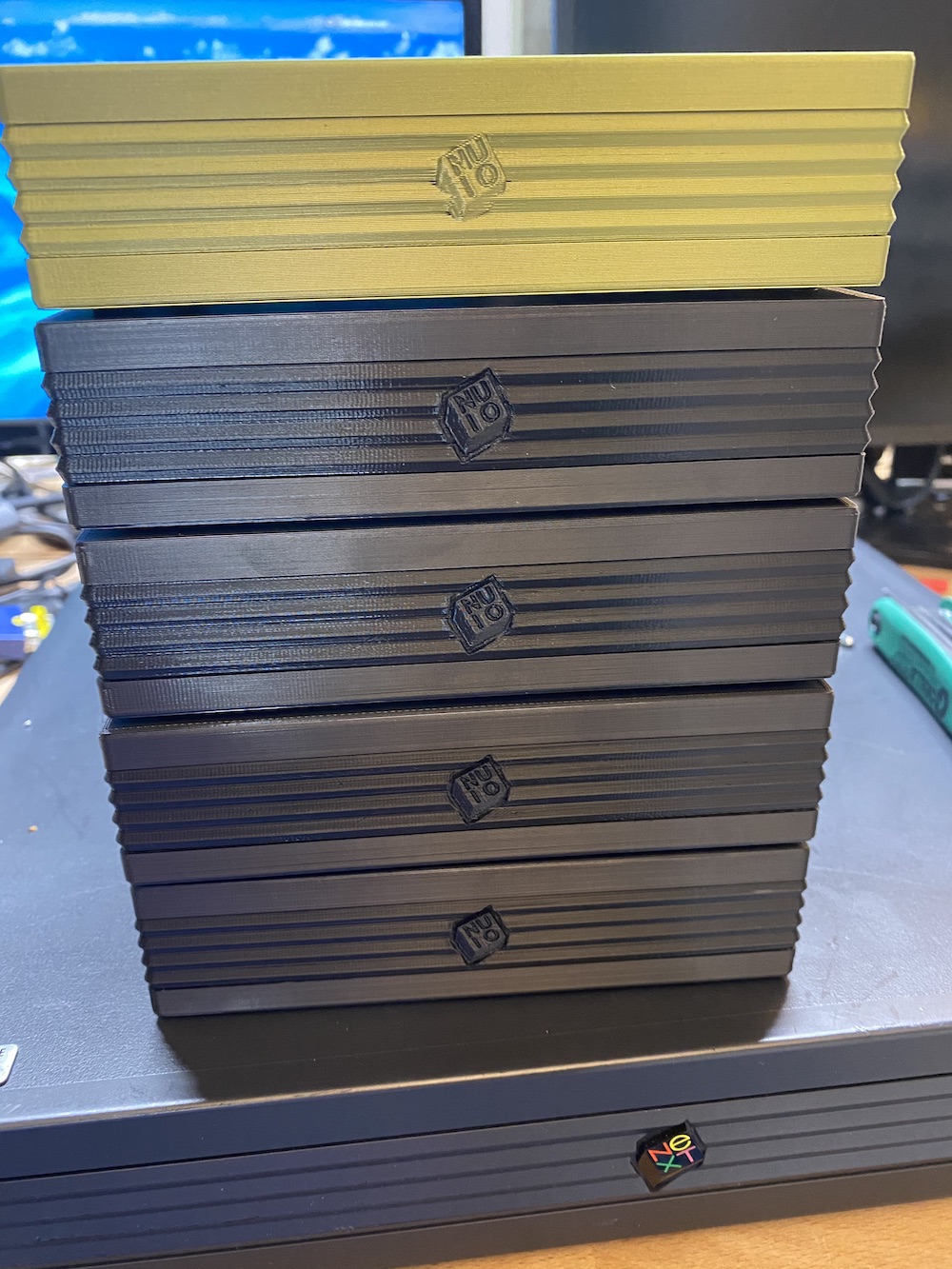

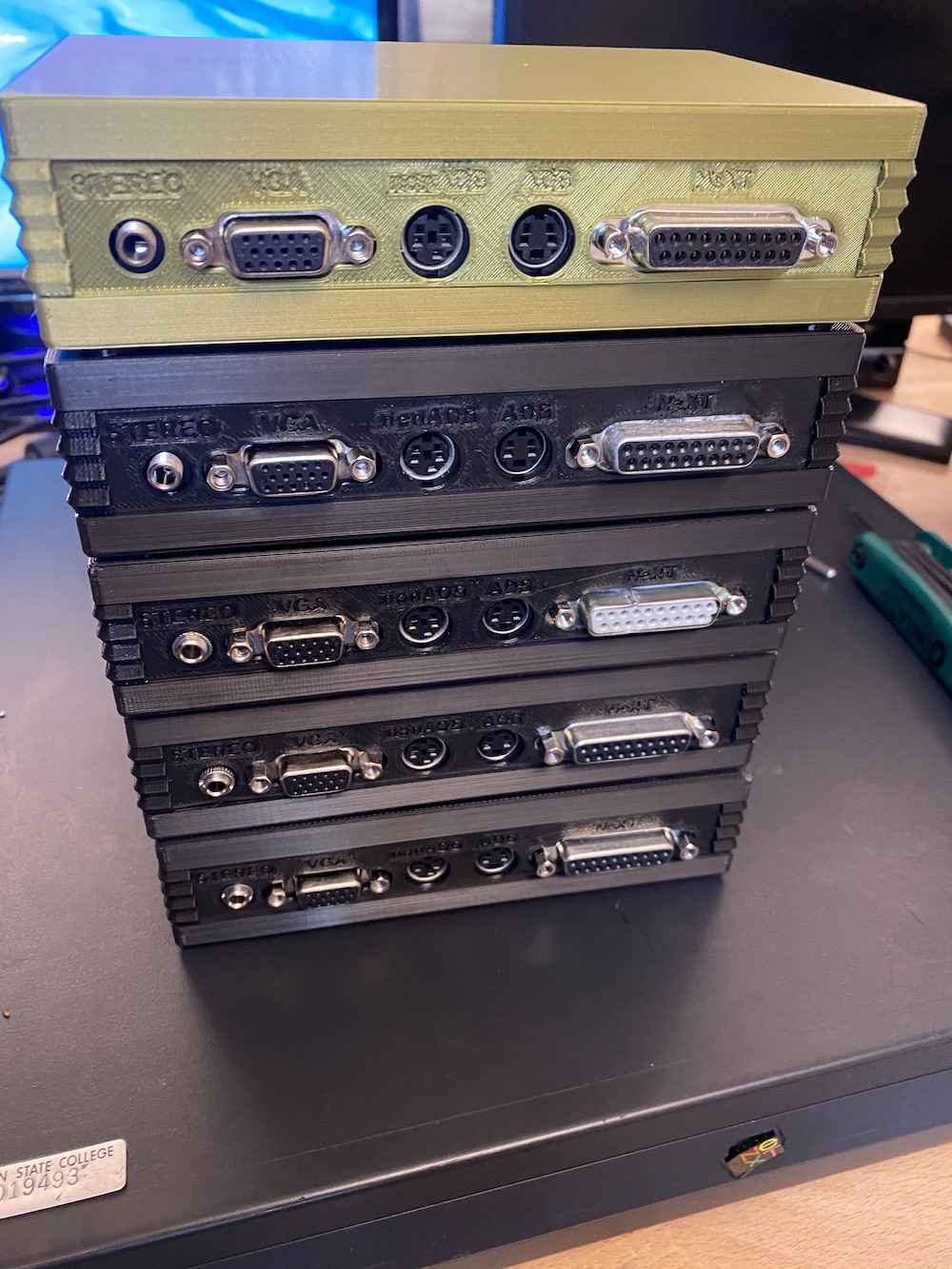

So I ended up a redesign of the case, which I feel makes it a more polished product at the end.

The "core" of the case is now printed in Prusament Galaxy Black PETG and the edges and corner piece are in the Polymaker PolyMax Black PETG . The center rib and back plate are still in Hatchbox Black PLA and the feet are in Sainsmart Black TPU95. As before M3x10 screws hold the case together.



Assembly is straight forward, the edge pieces slip over the top and bottom pieces, the rib slips over the top, the back plate slides into the slot in the rib and the corner piece pops and is held in place with a dab of glue.

Original design is available for download on Thingiverse: https://www.thingiverse.com/thing:4615196

This includes the original case as pictured above, a version of the rib without the front logo, and a version that combines the top and rib section with logo as a single piece for easier single filament, single color printing.

Share your prints! If you end up having issues with it printing let me know and I will see what I can tweak.
