Title: Matrox G200/G400 driver panics on boot
Post by: Forsa on May 31, 2022, 09:10:23 AM
Post by: Forsa on May 31, 2022, 09:10:23 AM

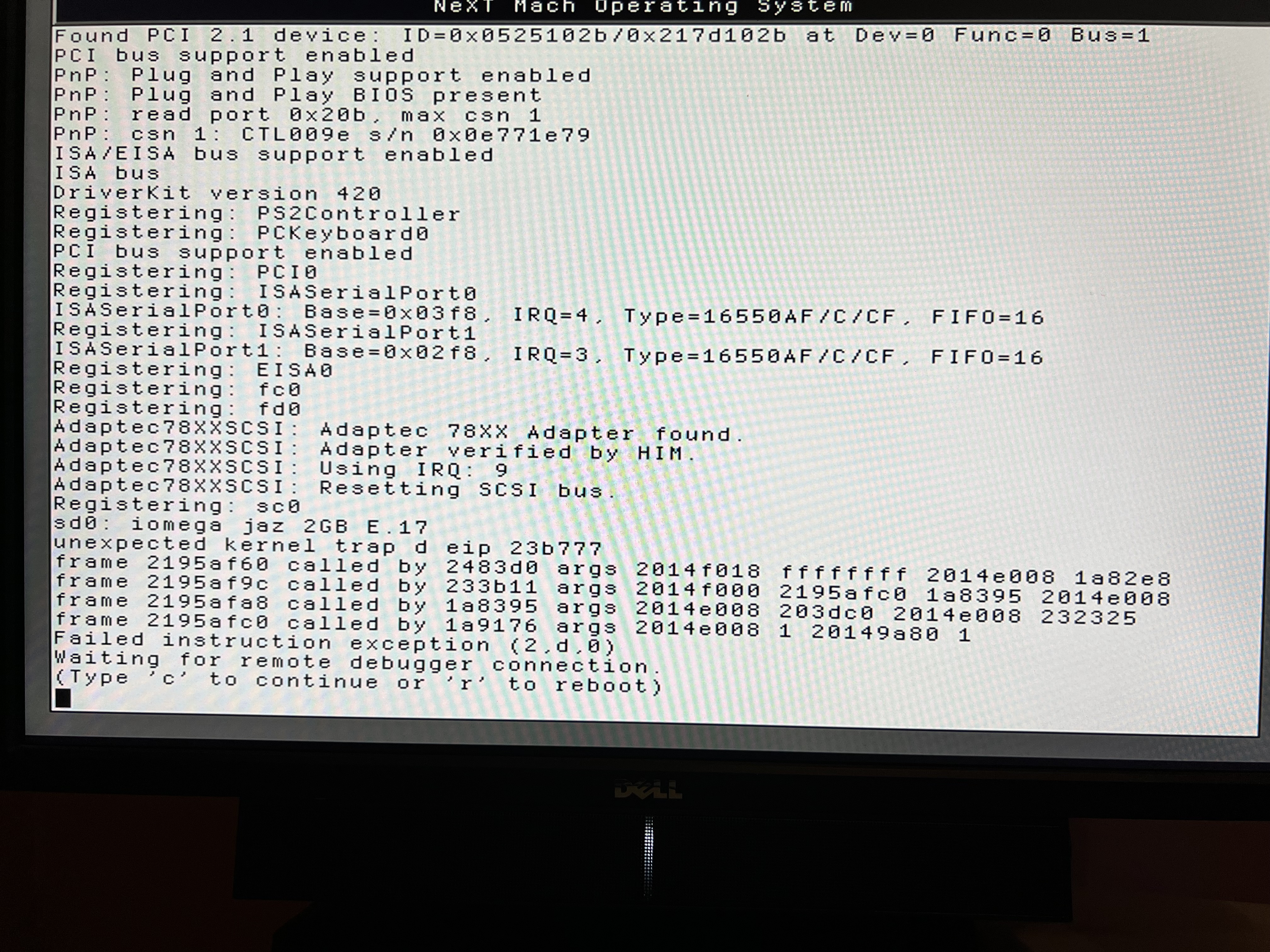

Trying the Matrox driver written by Mirko Viviani and it causes a kernel panic on startup, which is odd, since I remember this was working before.
Specs:
• Pentium-III 800 MHz CPU
• 512 MB SDRAM
• ASUS P2B-DS Intel 440BX chipset motherboard
• Matrox G400 Max 32MB AGP graphics card
• Intel Pro/100+ 10/100 Mb Ethernet network card (PCI)
• Creative Labs Sound Blaster AWE64 Gold sound card (ISA)
• Adaptec AIC-7890 Ultra 2 SCSI controller integrated to the motherboard
• Iomega Jaz drive (SCSI - internal)
• Toshiba Samsung SH-S182M DVD-RW drive (IDE)
• StarTech 3.5" Drive Bay IDE to CompactFlash Adapter Card Reader
• GoTek Floppy disk drive emulator
• Magna ATX 500W PSU
• PS/2 compact keyboard and mouse
• DELL U2412M 24" TFT LED flat panel monitor
Any ideas what I can do to sort this? I'm using the 1.0 version of the driver from http://www.mirkoviviani.com/drivers/Matrox.html
I have also tried a Matrox G200 8MB AGP card, but the driver fails in the same way. I've tested the Matrox cards under other operating systems on this PC and they are functioning normally. If I install a GeForce 4 Ti card with the VESA VBE Driver into the PC, OS4.2 works.
Specs:
• Pentium-III 800 MHz CPU
• 512 MB SDRAM
• ASUS P2B-DS Intel 440BX chipset motherboard
• Matrox G400 Max 32MB AGP graphics card
• Intel Pro/100+ 10/100 Mb Ethernet network card (PCI)
• Creative Labs Sound Blaster AWE64 Gold sound card (ISA)
• Adaptec AIC-7890 Ultra 2 SCSI controller integrated to the motherboard
• Iomega Jaz drive (SCSI - internal)
• Toshiba Samsung SH-S182M DVD-RW drive (IDE)
• StarTech 3.5" Drive Bay IDE to CompactFlash Adapter Card Reader
• GoTek Floppy disk drive emulator
• Magna ATX 500W PSU
• PS/2 compact keyboard and mouse
• DELL U2412M 24" TFT LED flat panel monitor
Any ideas what I can do to sort this? I'm using the 1.0 version of the driver from http://www.mirkoviviani.com/drivers/Matrox.html
I have also tried a Matrox G200 8MB AGP card, but the driver fails in the same way. I've tested the Matrox cards under other operating systems on this PC and they are functioning normally. If I install a GeForce 4 Ti card with the VESA VBE Driver into the PC, OS4.2 works.
Title: Re: Matrox G200/G400 driver panics on boot
Post by: itomato on June 01, 2022, 10:33:04 AM
Post by: itomato on June 01, 2022, 10:33:04 AM
Did you use the flags to specify memory size? Double-check PCI device IDs in configure.app?
Title: Re: Matrox G200/G400 driver panics on boot
Post by: Rob Blessin Black Hole on June 01, 2022, 03:27:40 PM
Post by: Rob Blessin Black Hole on June 01, 2022, 03:27:40 PM
Looks like and issue with the Jaz Drive image possible media corruption or read failure ?
Title: Re: Matrox G200/G400 driver panics on boot
Post by: Forsa on June 02, 2022, 01:39:41 AM
Post by: Forsa on June 02, 2022, 01:39:41 AM
The SCSI Jaz drive works correctly under OPENSTEP (mounts, writes and reads, tested with several cartridges) and there's no media in it at the time of this panic. Nevertheless, I'll try temporarily disabling the Adaptec SCSI driver to see if it helps.
I did specify VRAM size for the Matrox MGA driver and both of these Matrox cards used to work fine in this same PC previously. I wonder if it has to do with the sequence in which the startup sequence is attempting to load drivers.
I did specify VRAM size for the Matrox MGA driver and both of these Matrox cards used to work fine in this same PC previously. I wonder if it has to do with the sequence in which the startup sequence is attempting to load drivers.
Title: Re: Matrox G200/G400 driver panics on boot
Post by: rjnf on June 14, 2024, 01:03:03 PM
Post by: rjnf on June 14, 2024, 01:03:03 PM
Hello what resolution are you using on your dell, i have the mga400 32mb mily monitor does not allow 1920x1200 at 64 hz from the allowed mga driver possible list of resolutions my dell monitor which is the same as yours only does 60hz.?
Are you using 1600x1200?
Thanks and regards
Are you using 1600x1200?
Thanks and regards
Title: Re: Matrox G200/G400 driver panics on boot
Post by: Apple2guy on June 15, 2024, 02:20:05 AM
Post by: Apple2guy on June 15, 2024, 02:20:05 AM
My systems have no issue loading the Matrox driver.
Code Select
Jun 7 03:58:00 mordor mach: NeXT Mach 4.2: Tue Jan 26 11:21:50 PST 1999; root(rcbuilder):Objects/mk-183.34.4.obj~2/RELEASE_I386
Jun 7 03:58:00 mordor mach: physical memory = 960.00 megabytes.
Jun 7 03:58:00 mordor mach: using 255 buffers containing 1.99 megabytes of memory
Jun 7 03:58:00 mordor mach: available memory = 945.63 megabytes. vm_page_free_count = 1d8d1
Jun 7 03:58:00 mordor mach: PCI Ver=3.00 BusCount=129 Features=[ BIOS16 CM1 ]
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x03081106/0x03081849 at Dev=0 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x13081106/0x13081849 at Dev=0 Func=1 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.0 device: ID=0xb1981106 at Dev=1 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.0 device: ID=0xa2081106 at Dev=2 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x87789004/0x78879004 at Dev=9 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.0 device: ID=0x00091011 at Dev=11 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x13711274/0x13711274 at Dev=12 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x05911106/0x05911849 at Dev=15 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x05711106/0x05711849 at Dev=15 Func=1 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x30381106/0x30381849 at Dev=16 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x30381106/0x30381849 at Dev=16 Func=1 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x30381106/0x30381849 at Dev=16 Func=2 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x30381106/0x30381849 at Dev=16 Func=3 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x31041106/0x31041849 at Dev=16 Func=4 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x33371106/0x33371849 at Dev=17 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x287e1106/0x337e1106 at Dev=17 Func=7 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x30651106/0x30651849 at Dev=18 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.0 device: ID=0x337b1106 at Dev=19 Func=0 Bus=0
Jun 7 03:58:00 mordor mach: Found PCI 2.1 device: ID=0x0525102b/0x0378102b at Dev=0 Func=0 Bus=1
Jun 7 03:58:00 mordor mach: PCI bus support enabled
Jun 7 03:58:00 mordor mach: PnP: Plug and Play support enabled
Jun 7 03:58:00 mordor mach: PnP: Plug and Play BIOS present
Jun 7 03:58:00 mordor mach: PnP: read port 0x20b, max csn 0
Jun 7 03:58:00 mordor mach: ISA/EISA bus support enabled
Jun 7 03:58:00 mordor mach: ISA bus
Jun 7 03:58:00 mordor mach: DriverKit version 420
Jun 7 03:58:00 mordor mach: Adaptec 2940 Host Adapter found at Bus 0 Device 9
Jun 7 03:58:00 mordor mach: a2940_0: 16 Targets per Bus
Jun 7 03:58:00 mordor mach: Resetting SCSI Bus...
Jun 7 03:58:00 mordor mach: Registering: a2940_0 at 0xc800
Jun 7 03:58:00 mordor mach: Registering: sc0 at a2940_0 SCSI Bus 0 Target 7
Jun 7 03:58:00 mordor mach: sd0: QUANTUM ATLAS10K2-TY367L DA40
Jun 7 03:58:00 mordor mach: Registering: sd0 at Target 0 LUN 0 at sc0
Jun 7 03:58:00 mordor mach: sd0: Device Block Size: 512 bytes
Jun 7 03:58:00 mordor mach: sd0: Device Capacity: 34732 MB
Jun 7 03:58:00 mordor mach: sd0: Disk Label: Boot
Jun 7 03:58:00 mordor mach: sd1: QUANTUM ATLAS10K2-TY367L DA40
Jun 7 03:58:00 mordor mach: Registering: sd1 at Target 1 LUN 0 at sc0
Jun 7 03:58:00 mordor mach: sd1: Device Block Size: 512 bytes
Jun 7 03:58:00 mordor mach: sd1: Device Capacity: 34732 MB
Jun 7 03:58:00 mordor mach: sd1: Disk Label: Backup
Jun 7 03:58:00 mordor mach: sd2: MAXTOR ATLASU320_18_WLS B120
Jun 7 03:58:00 mordor mach: Registering: sd2 at Target 2 LUN 0 at sc0
Jun 7 03:58:00 mordor mach: sd2: No Valid Disk Label
Jun 7 03:58:00 mordor mach: sd2: Device Block Size: 512 bytes
Jun 7 03:58:00 mordor mach: sd2: Device Capacity: 17537 MB
Jun 7 03:58:00 mordor mach: sd3: QUANTUM ATLAS10K2-TY367L DA40
Jun 7 03:58:00 mordor mach: Registering: sd3 at Target 3 LUN 0 at sc0
Jun 7 03:58:00 mordor mach: sd3: Device Block Size: 512 bytes
Jun 7 03:58:00 mordor mach: sd3: Device Capacity: 34732 MB
Jun 7 03:58:00 mordor mach: sd3: Disk Label: Swap
Jun 7 03:58:00 mordor mach: Registering: sg0 at sc0
Jun 7 03:58:00 mordor mach: Registering: sg1 at sc0
Jun 7 03:58:00 mordor mach: Registering: sg2 at sc0
Jun 7 03:58:00 mordor mach: Registering: sg3 at sc0
Jun 7 03:58:00 mordor mach: Registering: ISASerialPort0
Jun 7 03:58:00 mordor mach: ISASerialPort0: Base=0x03f8, IRQ=4, Type=16550AF/C/CF, FIFO=16
Jun 7 03:58:00 mordor mach: Registering: PS2Controller
Jun 7 03:58:00 mordor mach: Registering: PCKeyboard0
Jun 7 03:58:00 mordor mach: PCI bus support enabled
Jun 7 03:58:00 mordor mach: Registering: PCI0
Jun 7 03:58:00 mordor mach: Registering: fc0
Jun 7 03:58:00 mordor mach: Registering: fd0
Jun 7 03:58:00 mordor mach: Registering: EISA0
Jun 7 03:58:00 mordor mach: Registering: event0
Jun 7 03:58:00 mordor mach: Registering: kmDevice0
Jun 7 03:58:00 mordor mach: rootdev 600, howto 0
Jun 7 03:58:00 mordor mach: Power management is enabled.
Jun 7 03:58:00 mordor mach: Registering: PS2Mouse
Jun 7 03:58:00 mordor mach: Registering: pp0
Jun 7 03:58:00 mordor mach: MatroxMGA Driver v1.0
Jun 7 03:58:00 mordor mach: Copyright (c) 1999-2005 Mirko Viviani
Jun 7 03:58:00 mordor mach:
Jun 7 03:58:00 mordor mach: Display: Mode selected: 1600 x 1200 @ 60 Hz (RGB:888/32)
Jun 7 03:58:00 mordor mach: Display0: Matrox Millennium G400 AGP
Jun 7 03:58:00 mordor mach: Display0: SDRAM size: 32 MB
Jun 7 03:58:00 mordor mach: Display0: RAMDAC: 300 MHz
Jun 7 03:58:00 mordor mach: Registering: Display0
Jun 7 03:58:00 mordor mach: SoundBlaster16PCI: found chip, VID 0x1274 DID 0x1371 rev. 0x08
Jun 7 03:58:00 mordor mach: SoundBlaster16PCI: I/O Port at 0xd400 IRQ: 11
Jun 7 03:58:00 mordor mach: SoundBlaster16PCI: codec vendor v (0x838476) revision 9 (0x09)
Jun 7 03:58:00 mordor mach: SoundBlaster16PCI: codec features 18bit DAC 18bit ADC
Jun 7 03:58:00 mordor mach: SoundBlaster16PCI: stereo enhancement: SigmaTel SS3D
Jun 7 03:58:00 mordor mach: Registering: SoundBlaster16PCI
Jun 7 03:58:00 mordor mach: DECchip21140: PCI Dev: 11 Func: 0 Bus: 0
Jun 7 03:58:00 mordor mach: Registering: en0
Jun 7 03:58:00 mordor mach: DECchip21140 based adapter at port 0xcc00 irq 10
Jun 7 03:58:00 mordor mach: DECchip21140 configured for 100BASE-TX (MII/SYM) interface
Jun 7 03:58:00 mordor mach: IP protocol enabled for interface en0, type "10MB Ethernet"
Jun 7 03:58:00 mordor mach: en0: Ethernet address 00:00:c0:14:4b:e6
Jun 7 03:58:00 mordor mach: st: major number 7
Jun 7 03:58:02 mordor inetd[162]: tlsproxy/tcp: unknown service
Jun 7 03:58:03 mordor reboot: Reboot complete
Jun 7 03:58:06 mordor loginwindow[214]: Checking for DOS partitioned disk
Jun 7 03:58:12 mordor loginwindow[216]: netname look up success: NeXT 4.0 Pasteboard Server (1)
Jun 7 03:58:12 mordor loginwindow[216]: running /usr/lib/NextStep/Workspace.app/Workspace
Jun 7 03:58:12 mordor Workspace[216]: logged in
