Newish Intel OPENSTEP 4.2 box

Apparently "newish" is an actual word (https://www.thefreedictionary.com/newish). I put together an Intel box to test a more recent motherboard/CPU combination (2008 era) than what I've used in the past. It still has some quirks, so I'll need to do a lot more testing before I would recommend this combination to anyone. Here's a quick list of components:

•    3.0 GHz Intel Core 2 Quad Q9650 CPU
•    MSI MS-7519 P43-C51 motherboard

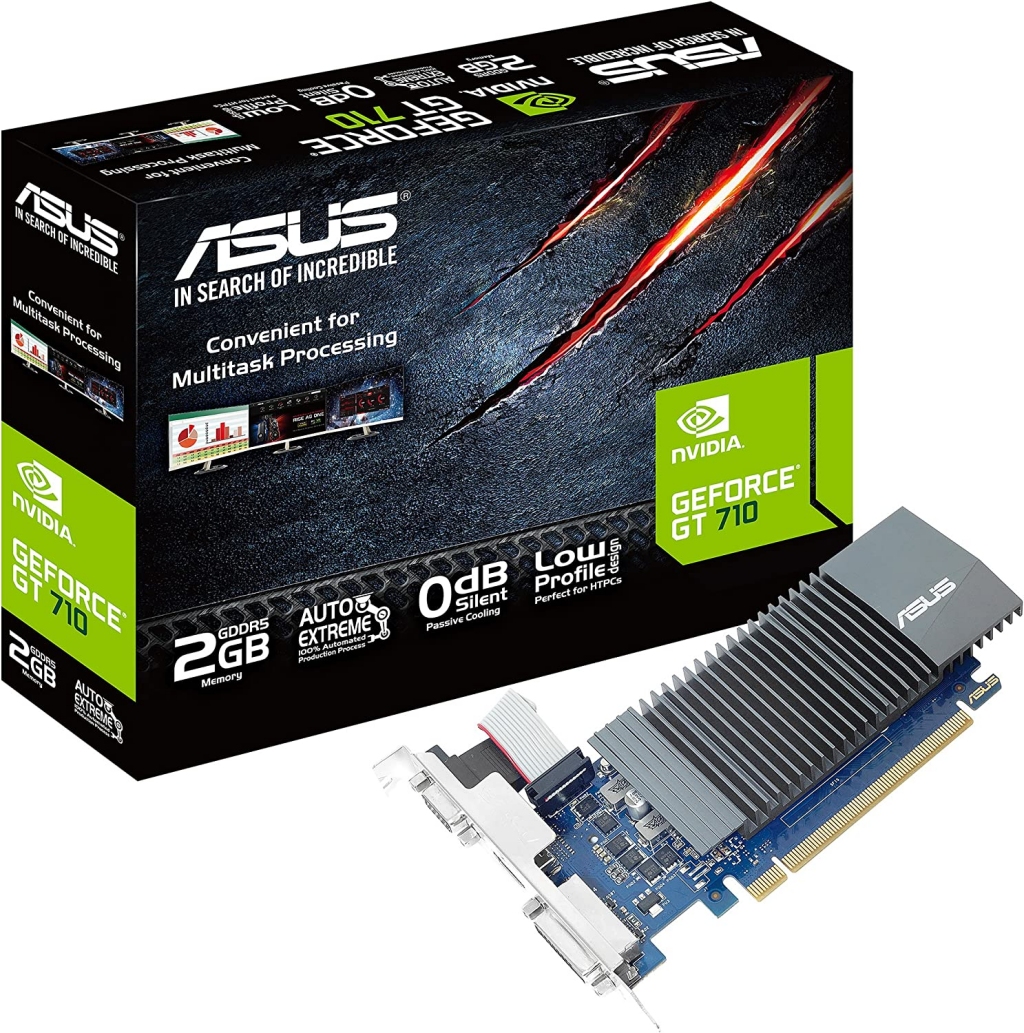

•    Asus PCI Express Nvidia GeForce GT 710 2GB fanless video card
•    8GB of G.SKILL DDR3 RAM (908.20MB available to OPENSTEP)
•    Ensoniq AudioPCI ES1371 sound card
•    3com 3C905B-TX PCI network adapter
•    Adaptec AHA-2940UW PCI SCSI adapter
•    New/old stock IBM 9 GB 68 pin SCSI hard drive
•    Pioneer DVD-305S SCSI DVD drive
•    New optical PS/2 wheel mouse (https://www.amazon.com/dp/B07WV55HZD)
•    Dell PS/2 keyboard

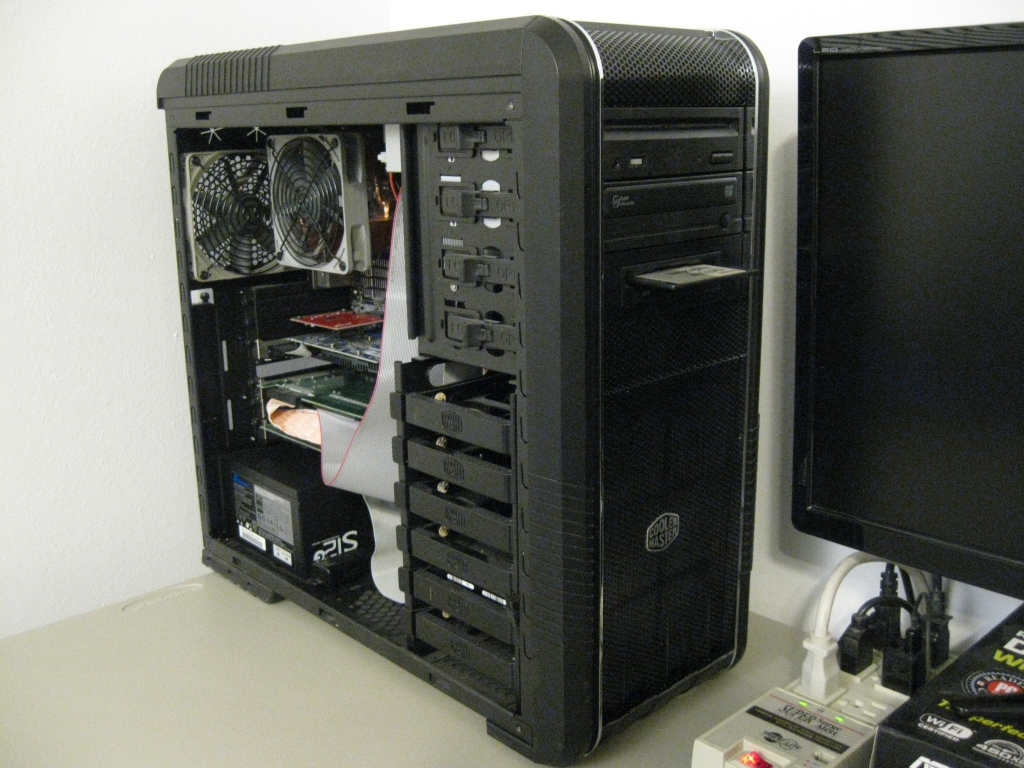

•    Cooler Master computer case from my PC graveyard

A lot of time was spent shuffling expansion cards around and turning BIOS settings on/off to finally get things working. Some of the setup problems were self-inflicted. The PCI Express video card used in this build may still be available new from a few vendors. With the OPENSTEP VESA driver the card uses VBE mode 333 (https://en.wikipedia.org/wiki/VESA_BIOS_Extensions), which is listed during boot as 1920 x 1080 32bpp. Video output is through the HDMI port to a 1080P monitor.

The computer is set up to triple-boot OPENSTEP 4.2, Ubuntu 22.04 and Windows 7 using GRUB2. I added a USB 3.0 adapter for Linux and Windows to use since the onboard USB controller is disabled due to IRQ conflicts with pretty much everything. There's also a SATA SSD and DVD burner for use by Linux and Windows. The $10 optical PS/2 wheel mouse has worked out great so far.

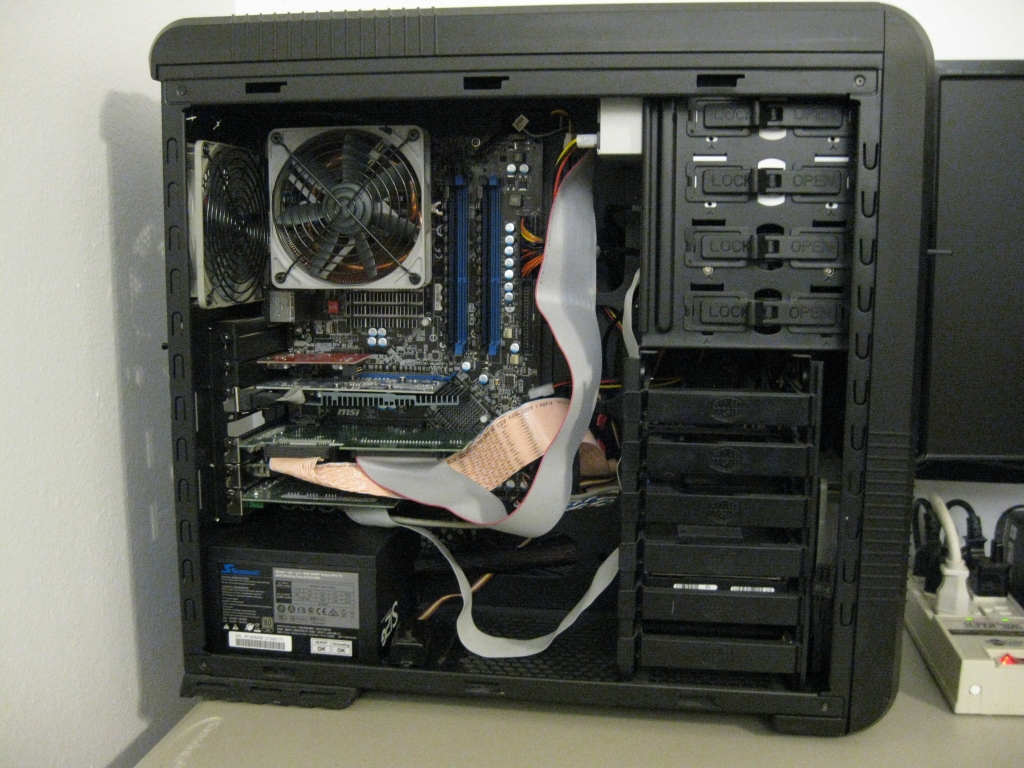

Cable management is about as good as it's going to get with ribbon cables. The box still needs more testing, as a few of the benchmarks either didn't finish or gave strange results, however the BYTE Benchmark did manage to complete.

==============================================================

  BYTE UNIX Benchmarks (Version 3.11)
  System -- localhost
  Start Benchmark Run: Sun Jun  5 17:54:12 GMT 2022
   2 interactive users.
Dhrystone 2 without register variables   9479069.3 lps   (10 secs, 6 samples)
Dhrystone 2 using register variables     9131290.5 lps   (10 secs, 6 samples)
Arithmetic Test (type = arithoh)         20873556.1 lps   (10 secs, 6 samples)
Arithmetic Test (type = register)        2755093.5 lps   (10 secs, 6 samples)
Arithmetic Test (type = short)           2225001.5 lps   (10 secs, 6 samples)
Arithmetic Test (type = int)             2754777.2 lps   (10 secs, 6 samples)
Arithmetic Test (type = long)            2755127.9 lps   (10 secs, 6 samples)
Arithmetic Test (type = float)           1469827.9 lps   (10 secs, 6 samples)
Arithmetic Test (type = double)          1469721.2 lps   (10 secs, 6 samples)
System Call Overhead Test                689235.7 lps   (10 secs, 6 samples)
Pipe Throughput Test                     1042036.5 lps   (10 secs, 6 samples)
Pipe-based Context Switching Test        271977.5 lps   (10 secs, 6 samples)
Process Creation Test                      9189.4 lps   (10 secs, 6 samples)
Execl Throughput Test                      no measured results
File Read  (10 seconds)                  2249500.0 KBps  (10 secs, 6 samples)
File Write (10 seconds)                   13800.0 KBps  (10 secs, 6 samples)
File Copy  (10 seconds)                   10833.0 KBps  (10 secs, 6 samples)
File Read  (30 seconds)                  2243652.0 KBps  (30 secs, 6 samples)
File Write (30 seconds)                   13600.0 KBps  (30 secs, 6 samples)
File Copy  (30 seconds)                    9861.0 KBps  (30 secs, 6 samples)
C Compiler Test                             387.3 lpm   (60 secs, 3 samples)
Shell scripts (1 concurrent)                370.0 lpm   (60 secs, 3 samples)
Shell scripts (2 concurrent)                198.7 lpm   (60 secs, 3 samples)
Shell scripts (4 concurrent)                 80.7 lpm   (60 secs, 3 samples)
Shell scripts (8 concurrent)                 42.3 lpm   (60 secs, 3 samples)
Dc: sqrt(2) to 99 decimal places          64585.3 lpm   (60 secs, 6 samples)
Recursion Test--Tower of Hanoi            70234.2 lps   (10 secs, 6 samples)

/MyApps/ByteBenchmark/pgms/index.base /tmp/27862.dat

                     INDEX VALUES
TEST                                        BASELINE     RESULT      INDEX

Arithmetic Test (type = double)               2703.3  1469721.2      543.7
Arithmetic Test (type = long)                 2827.0  2755127.9      974.6
Arithmetic Test (type = register)             2847.5  2755093.5      967.5
C Compiler Test                                 24.1      387.3       16.1
Dhrystone 2 without register variables       24179.3  9479069.3      392.0
Execl Throughput Test                           23.7        0.0        0.0
File Copy  (30 seconds)                        518.0     9861.0       19.0
File Read  (30 seconds)                      18288.0  2243652.0      122.7
File Write (30 seconds)                        600.0    13600.0       22.7
Pipe-based Context Switching Test             1153.5   271977.5      235.8
Process Creation Test                           34.0     9189.4      270.3
Recursion Test--Tower of Hanoi                 323.8    70234.2      216.9
Shell scripts (8 concurrent)                     3.8       42.3       11.1
                                                                 =========
     SUM of 13 items                                                3792.4
     AVERAGE                                                         291.7

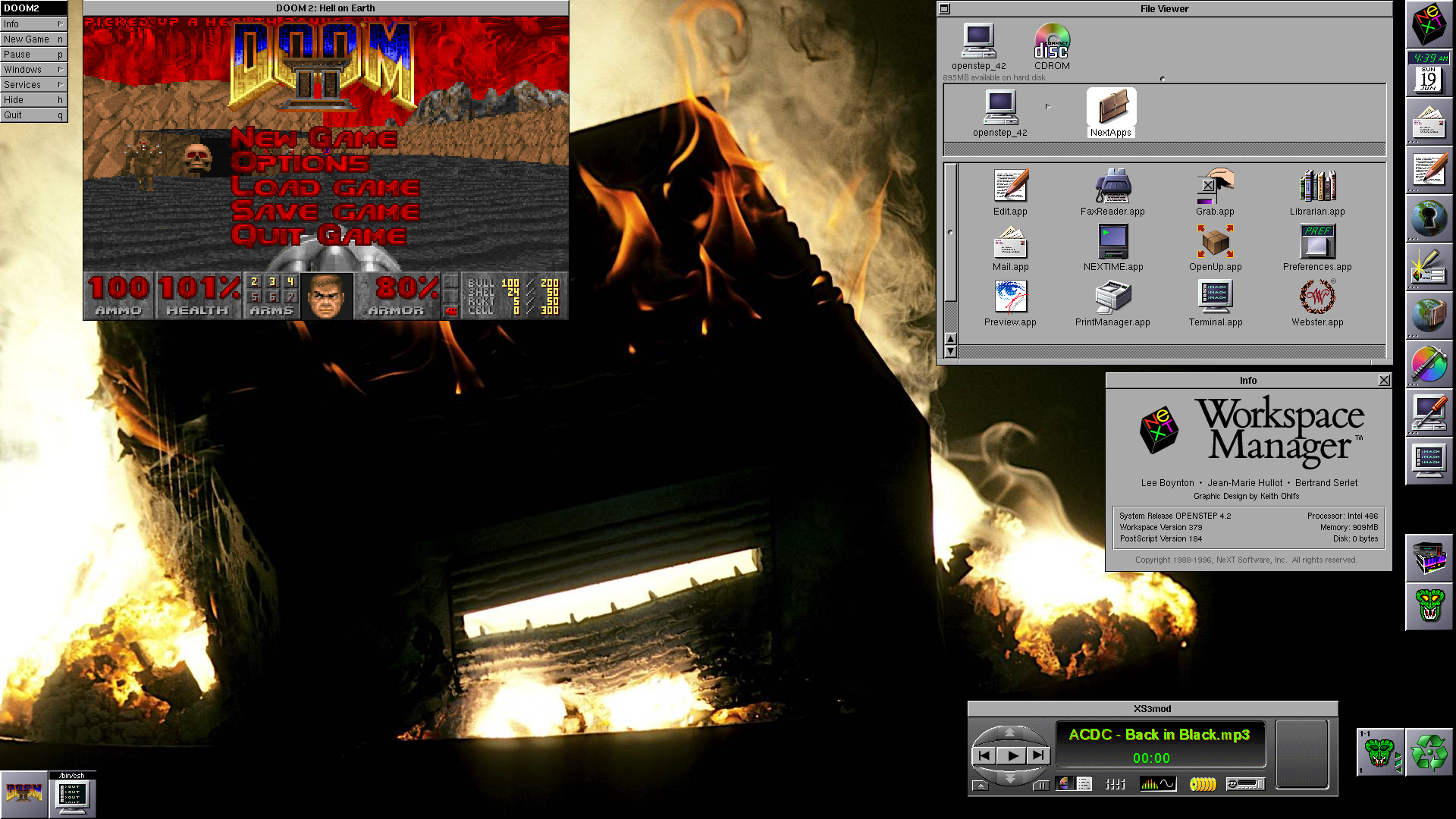

It runs all of the software that I've tried so far, with the exception of a few benchmarks. I have another motherboard with the same processor, so I'll test that in the future.

Nice build.  Does the Ensoniq function properly under OPENSTEP?

As I mentioned elsewhere, I was thinking about going for a full ATX 440BX, but if things work Well Enough(tm) with what you have there (re the Ensonic and the GeForce as a VESA VBE framebuffer), then that opens up a whole world of Micro and Mini ATX/ITX systems and cases.

Also, that desktop background... that poor Cube.  I hope that involved thermite, uh, for, um, science!

Quote from: verdraith on January 18, 2023, 03:38:44 AMNice build.  Does the Ensoniq function properly under OPENSTEP?

As I mentioned elsewhere, I was thinking about going for a full ATX 440BX, but if things work Well Enough(tm) with what you have there (re the Ensonic and the GeForce as a VESA VBE framebuffer), then that opens up a whole world of Micro and Mini ATX/ITX systems and cases.

Also, that desktop background... that poor Cube.  I hope that involved thermite, uh, for, um, science!

Thanks. Yes, the Ensoniq card works with OPENSTEP, although I had to turn off IRQ sharing in the expert settings of Configure.

This year marks the thirtieth anniversary of Simson Garfinkel's cube burning. We may have to start a wallpaper thread.  :)

I like the idea behind this :)

Regarding the VESA driver and graphics card. Is this option the best compared to using one of the older properly supported ones? I was under the impression, that the VESA driver was like a last resort and only good for systems that shouldn't do intense graphic.


-Daxziz

I think using hardware for which drivers exist is always the better option, but the list of supported video cards for NEXTSTEP and OPENSTEP is pretty small, and there would be other considerations to take into account -- such as busses, slots, displays et al.

Traditionally, VESA mode runs the Vendor Support Gauntlet(tm), that is to say that some vendors do not implement VESA as they ought to, and getting the right VESA mode might be a challenge.

With that said, I suspect a large percentage NVIDIA and AMD cards would work with the VESA driver, and people posting whether a card works or not could be a useful thing for build variety.

For example, https://hardware.besly.de/index.php?hardware=Graphic_Cards (https://hardware.besly.de/index.php?hardware=Graphic_Cards)

Quote from: Daxziz on January 25, 2023, 01:46:45 AMI like the idea behind this :)

Regarding the VESA driver and graphics card. Is this option the best compared to using one of the older properly supported ones? I was under the impression, that the VESA driver was like a last resort and only good for systems that shouldn't do intense graphic.


-Daxziz

I would echo what verdraith said and add a few things. Some of the older video cards were barely fast enough even with a proper driver, so the added VESA emulation layer was more of a problem. These newer cards are so fast that the VESA driver doesn't appear to be an issue. We'll have to come up with a list of standard video benchmarks that we can use to compare video cards. I'll be happy to run benchmarks on the cards I have.

Quote from: Nitro on January 25, 2023, 04:53:36 AMI would echo what verdraith said and add a few things. Some of the older video cards were barely fast enough even with a proper driver, so the added VESA emulation layer was more of a problem. These newer cards are so fast that the VESA driver doesn't appear to be an issue. We'll have to come up with a list of standard video benchmarks that we can use to compare video cards. I'll be happy to run benchmarks on the cards I have.

I really like the idea of a benchmark test on newer cards. If the increased performance on the newer cards would allow for the regular VESA driver to actually make newer cards work somewhat, that would be interesting :)

I suppose the question is:  which benchmarks?

Given how DPS complicates the matter (graphics performance is tied to bit blitting), perhaps NXBench's 'NXFactor' test?

Quote from: verdraith on January 25, 2023, 05:41:25 AMI suppose the question is:  which benchmarks?

Given how DPS complicates the matter (graphics performance is tied to bit blitting), perhaps NXBench's 'NXFactor' test?

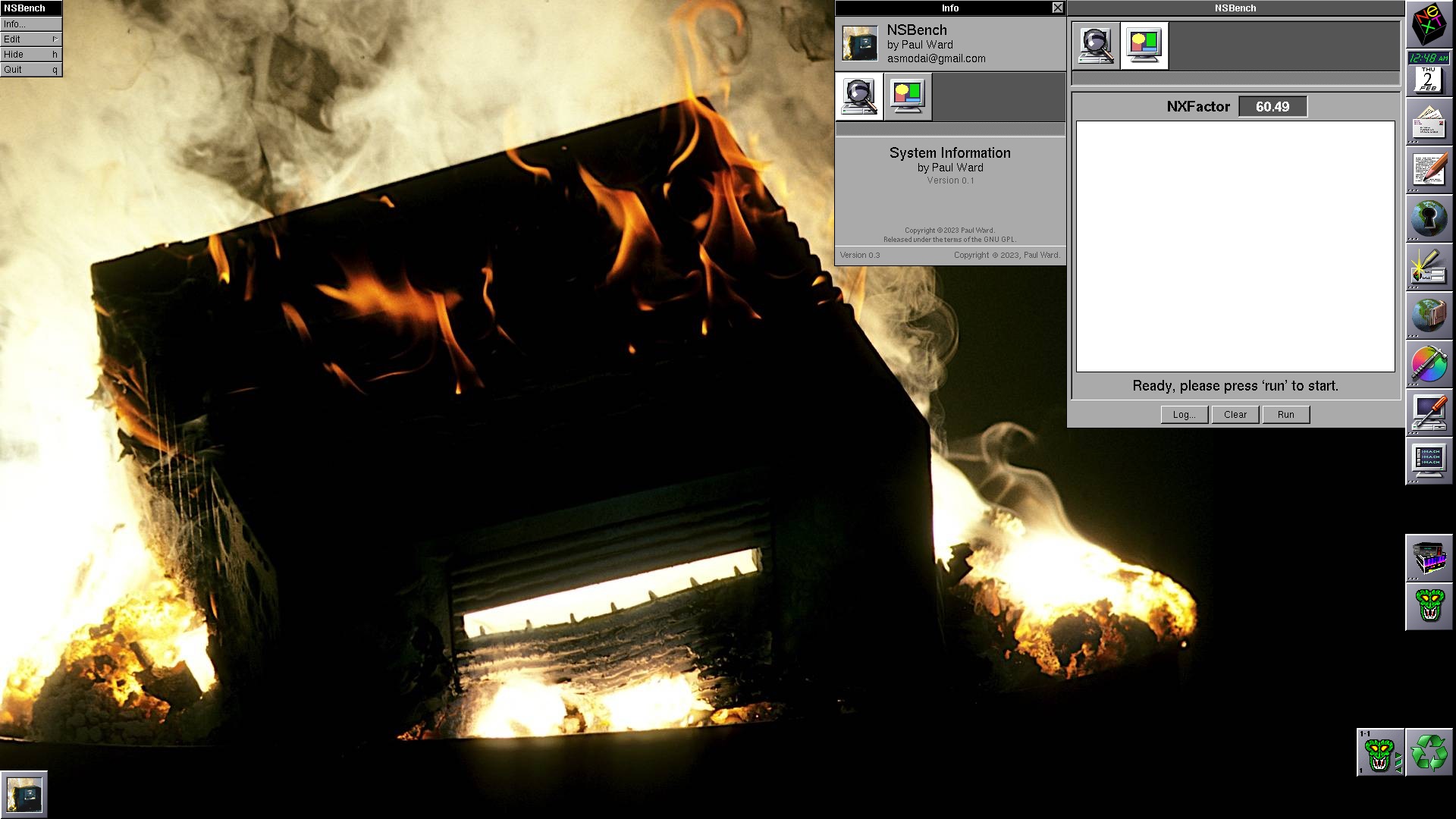

That's one test that I did run after the build. The NXFactor score was 30.782.

that's not too shabby... what would the NXFactor be for a real Cube + Dimension on the colour screen?

-- edit --

Actually, might be better to use a NeXTstation Color as the baseline... given the main job for a Dimension's i860 is to shunt blocks of colour around memory.

If memory serves, NXFactor was based on a stock cube, I think an 030 25mhz mono.

The readme states a 25MHz '040 mono cube... so that'll give an 'NXFactor' of 1.

A baseline for colour video cards should really be whatever the NXFactor of a colour display, imo.

Anyhoo, I located the sources for the GNUstep port of NXBench (GSBench), and I am in the process of porting that back to NEXTSTEP 3.3 (how's that for meta?), which leads me on to the puff pastry meat pie of this post.

---

Dhrystone is meaningless and dead.  Long live Dhrystone.

---

"There are lies, damn lies, and benchmarks."

Dhrystone, the old Gold Standard(tm) for system benchmarks, is totally meaningless.  Compilers can optimise heaps of it away, it doesn't represent a meaningful system workload, and on modern hardware you're likely to get an amazingly-brilliant result of 0 (please increase number of runs).

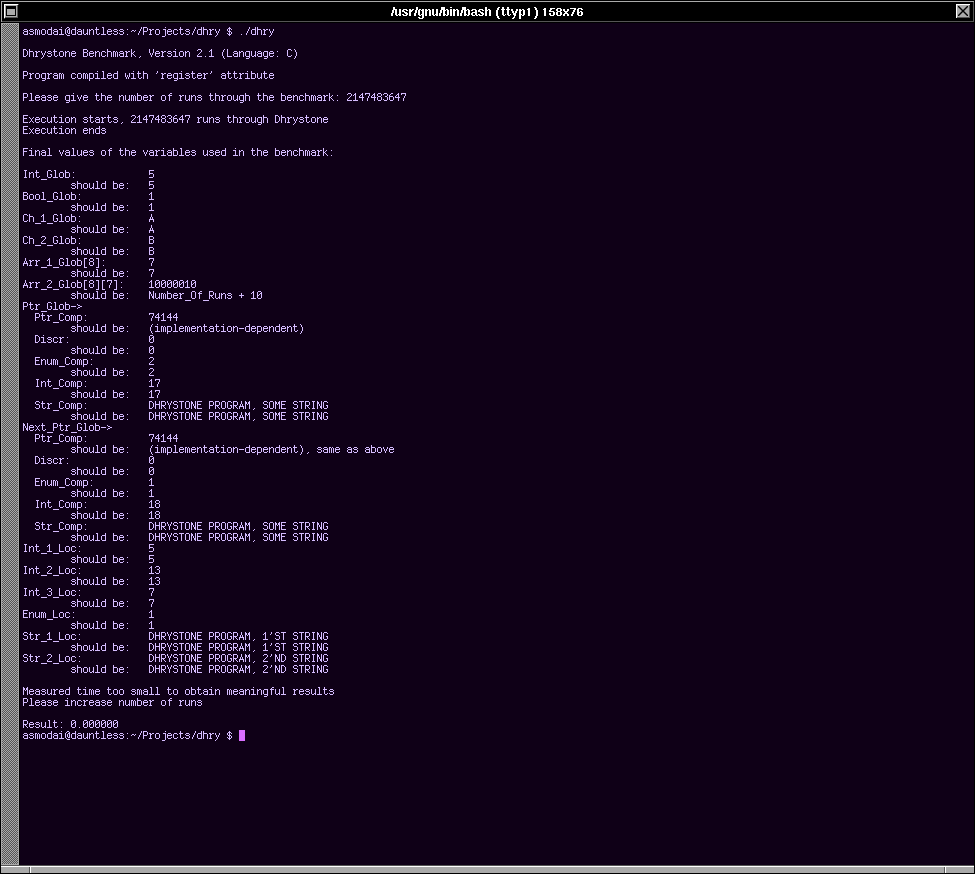

As an example:

I have given it the largest number one can stuff into a signed integer, yet that's not enough.

The underlaying CPU for that VM is an Intel i7-6950X clocked at 3.9GHz (even though that's an X-series, that's a few generations behind the latest generation.)  The OS is NEXTSTEP 3.3 Intel and the compiler is GCC 2.5.8.

The solution

I'm looking into using CoreMark (https://github.com/eembc/coremark (https://github.com/eembc/coremark)) as the benchmark that my NEXTSTEP port of the GNUstep port of the Rhapsody port of the OPENSTEP port of NXBench will use.

I think it will give more meaningful results when it comes to running NEXTSTEP 3.3 Intel or OPENSTEP 4.2 Intel on any machine newer than a 486DX.  The interesting part will be running it on '030 and '040 hardware.

CoreMark utilises such things as integer arithmetic, matrix manipulation, linked lists, state machine operation with data-dependant branches, etc... stuff more representative of an actual system workload.

More detailed information can be found on CoreMark's wikipedia page at https://en.wikipedia.org/wiki/Coremark (https://en.wikipedia.org/wiki/Coremark).

On the plus side, my port will be quad-fat, so we can get values from PA-RISC and SPARC, too!

I kinda wish NeXT had done a deal with SGI to get access to GL, then I could base graphics performance off this 'benchmark':


https://www.youtube.com/watch?v=s13iFPSyKdQ
For those thinking 'huh?', that content creator knocks up a fake video card and 'review' for April Fool's Day... they're quite ingenious :)

As I mentioned in the first post, this build is a test platform to see what newer hardware might work with OPENSTEP. It still needs a lot more testing to make sure everything works well. I'm not looking for the ultimate build here, just testing hardware to see what works. I'm basically going after the low hanging fruit at this point.

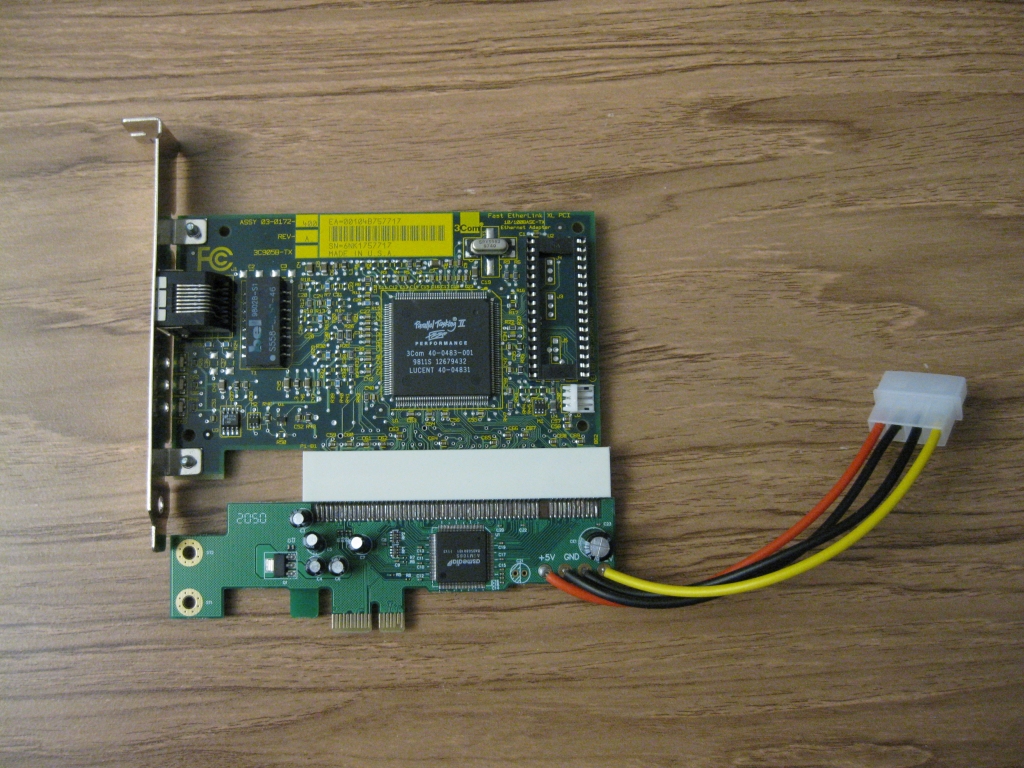

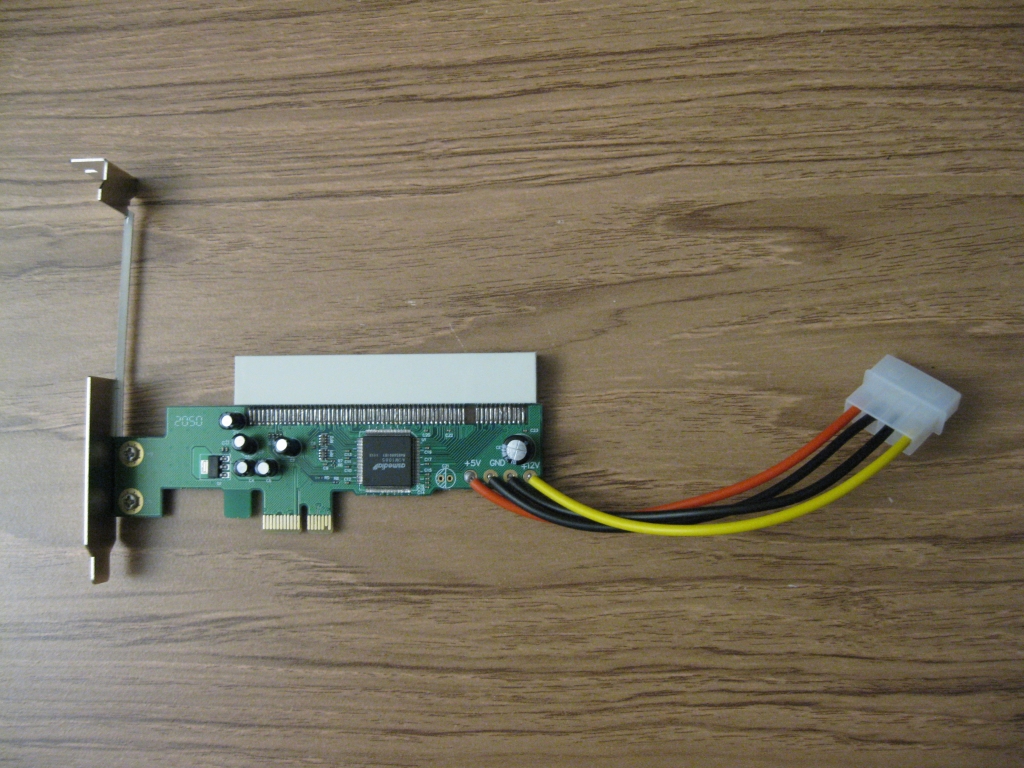

I tested a PCI Express to PCI adapter with the 3C905B-TX network card and initial testing was successful in a PCI-E 1x slot. Hopefully this means that in addition to PCI Express video cards we can use PCI Express cards such as network cards with an appropriate driver. I removed the flimsy mounting bracket on the adapter for testing. In actual use I would probably use a PCI Express 1x riser cable (https://www.amazon.com/ADT-Link-90Degree-Extension-R11SL-TL-Extender/dp/B07TBLRZYJ/) and/or a PCI riser cable to relocate the card to an open slot.




I also ran the Povray skyvase benchmark mentioned in this thread (https://www.nextcomputers.org/forums/index.php?topic=1013), and the image rendered in 8 seconds.  :o

I have additional hardware on the way to do further testing. I'll probably try to slow the processor down with underclocking to see if that will allow the troublesome benchmarks to complete. More to follow.

Thank you @verdraith for taking the time to work on NSBench (https://github.com/Asmodai/NeXT-NSBench/releases/tag/v0.3). It works great; love the icon. ;)

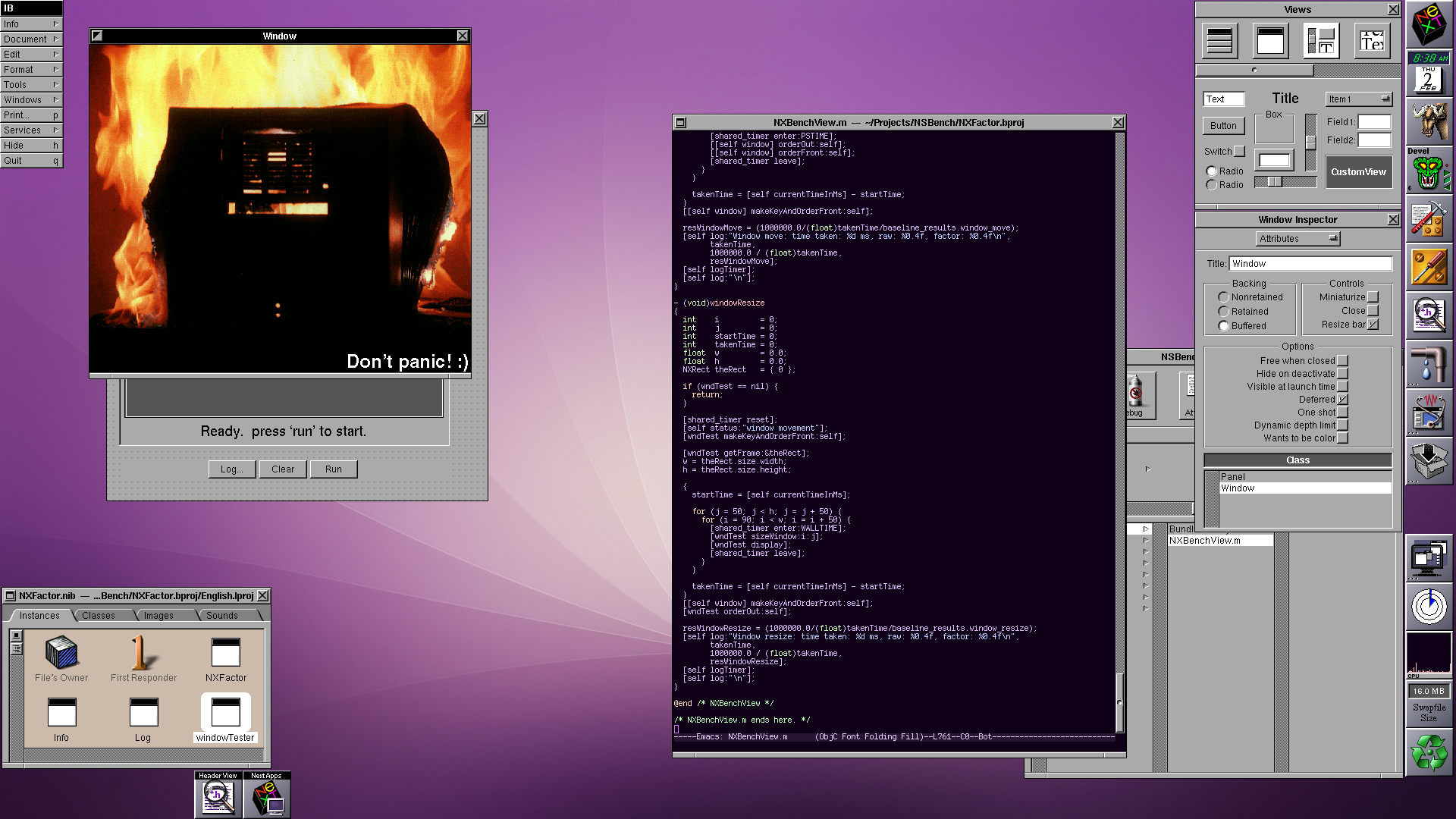

Mate, you should see what I did for the window resize test... though, for it to be apparent you'd need to run it on an m68k, so I guess I'll post a screenshot  8)

Quote from: verdraith on February 02, 2023, 02:34:16 AMMate, you should see what I did for the window resize test... though, for it to be apparent you'd need to run it on an m68k, so I guess I'll post a screenshot  8)

Very nice! All this talk about burning cubes is getting around.

https://blog.adafruit.com/2023/01/31/do-magnesium-next-cube-cases-burn-nextcomputer/

I just finished building three more newish Intel boxes, so I'll have a write-up on those as time permits. I no longer think that this first newish box has any stability issues, as one of the two benchmarks that wouldn't run also had issues on the other boxes. The second benchmark seemed to go crazy just on this box when I adjusted one of the SCSI settings on the Adaptec controller. The other boxes use SATA drives so they didn't exhibit that behavior. I have a new CPU for testing, and I believe it's one of the final P4 single core processor models that Intel manufactured. We'll see how that CPU runs in this board. I also had fun setting up OPENSTEP on some SATA SSD drives running in IDE mode, and they're fast and quiet. One of the newish machines is a P4 mini-ITX box. It was a challenge to shoehorn everything into a small PC case. I'll have more details on that soon.

Just wanted to say thankyou. I found this thread and went for GT 710 -> 1080p.
It only works on a 1080p display, with my 4k monitor I only get the standard modes, up to 1280x1024.

Hi.

 How do you install this? Do you /bin/dd the hd image to the hard drive or do you boot of a USB floppy before it boots of the CD-ROM?

Regards

pTek

An easy way to set up an IDE drive is to build one from a running patched machine. If you don't have a NS/OS patched machine you can build one with an old PC that has a standard floppy drive. Another option is to build a bootable CD (https://peterwong.net/blog/creating-an-openstep-boot-cd-2/) if your old PC doesn't have a floppy drive. Then install the OS onto a 2GB or smaller drive and patch the system with the latest patches.

Now you can build IDE drives from that machine by connecting a new drive to it and using a disktab to set up the BSD slices and the file system. Then you can dump/restore the patched OS from the old PC's boot drive to the new IDE drive. This is just one way of doing it.

There are different ways to set up the drive depending on whether you use DOS style partitions or BSD slices, the number of partitions, dual boot or not, etc. I posted some info on setting up a dual boot IDE SSD at the bottom of this post (https://www.nextcomputers.org/forums/index.php?topic=4960.msg29416#msg29416). I hope that helps you out.

Thank you Nitro, I had that CD webpage as one of my bookmarks. Are you burning that CD.iso to USB because I read that a lot of the BIOS that allows bootable USBs, if you /bin/dd the install.iso to a USB stick then the machine will install of that? It's getting a lot harder to buy blank CDs this decade compared to 10 years ago but that is progress.

I'll try this afternoon with bootable CD to ISO.

I've been trying to be careful with my virtual builds of OpenStep in case I need to write it to a hard drive and I've set it to drivers which aren't detected by my Dell Inspiron 5150 Laptop. My ATI graphics card will hopefully be able to fall back on to VESA or in worse case VGA @ 640x480.

I've always run NEXTSTEP and OPENSTEP on hardware that has a floppy drive, so I haven't had a chance to try the bootable CD that @pitz created. I also haven't tried booting off of USB for NS/OS installations; although I've used Rufus to convert ISO's to bootable USB drives for Linux installations.
