Title: Long shot: USMonitor_Adjust.tiff ?
Post by: pl212 on February 23, 2025, 02:19:05 PM
Post by: pl212 on February 23, 2025, 02:19:05 PM
The N4000 service manuals mention this calibration file, which is essentially a 8.5" x 11" landscape document optimized for setting size, focus, etc::
Don't suppose this has shown up anywhere? Otherwise I might be tempted to re-create it...
QuoteUSMonitor_Adjust.tiff is a picture file that is the size of an 11 by 8.5 inch landscape page with some 12 point text and concentric squares. You can use any style of display to adjust brightness and focus. The standard size page display of the monitor adjustment file assists in adjusting proper display size.
Don't suppose this has shown up anywhere? Otherwise I might be tempted to re-create it...
Title: Re: Long shot: USMonitor_Adjust.tiff ?
Post by: Nitro on February 25, 2025, 08:15:19 AM
Post by: Nitro on February 25, 2025, 08:15:19 AM

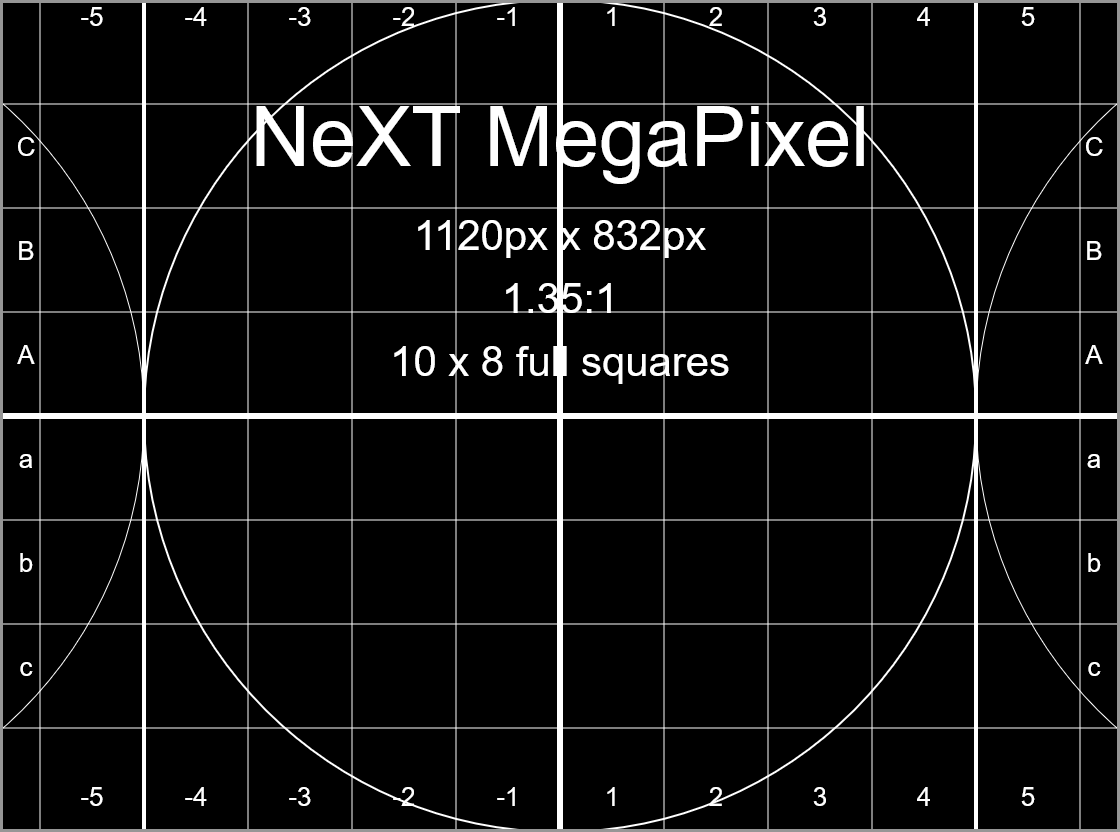

I don't have the original file but here's a quick test pattern created on https://testpatterngenerator.com/. It needs to be converted to a tiff. I'm not sure if that will help or not but it might be useful for some of the monitor adjustments.
